EBV18-4B-Q
STRONGHOLD FEMALE BULLET DISCONNManufacturer: Panduit Corp
Categories: Barrel, Bullet Connectors
Quality Control: Learn More

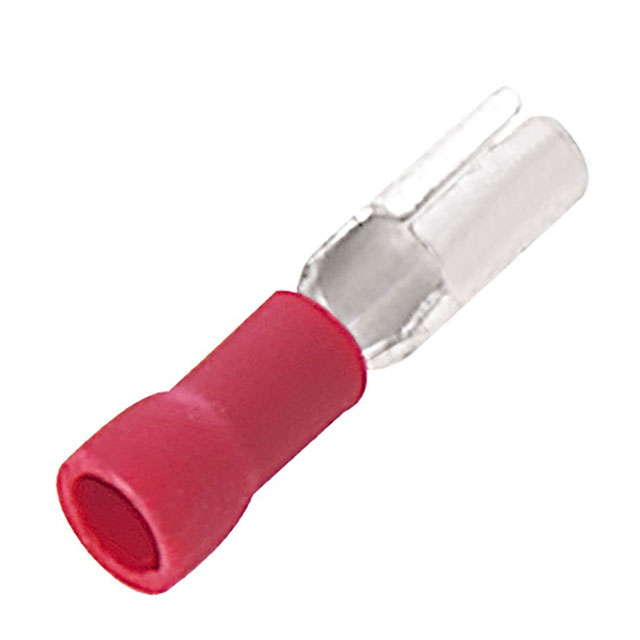

Panduit Corp StrongHold™ EBV18-4B-Q is a female receptacle terminal connector designed for reliable electrical connections. This component utilizes a tin contact finish on brass material for optimal conductivity and durability. Engineered for wire gauges from 16 to 22 AWG, it features a barrel diameter of 0.150" (3.81mm) and a barrel length of 0.280" (7.11mm). The overall length of the connector is 0.850" (21.59mm). The non-mating end is insulated, providing enhanced safety during termination. This crimp-style terminal is suitable for applications requiring robust and efficient wire termination, commonly found in automotive, industrial automation, and commercial equipment sectors. The EBV18-4B-Q is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Wire Gauge | 16-22 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Female, Receptacle (Socket) |
| Length - Overall | 0.850"" (21.59mm) |
| Termination | Crimp |
| Diameter - Barrel | 0.150"" (3.81mm) |
| Length - Barrel | 0.280"" (7.11mm) |
| Contact Material | Brass |
