PM-Y44P-C3
SENSOR OPT SLOT PNP MODULEManufacturer: Panasonic Industrial Automation Sales
Categories: Transistor Output
Quality Control: Learn More

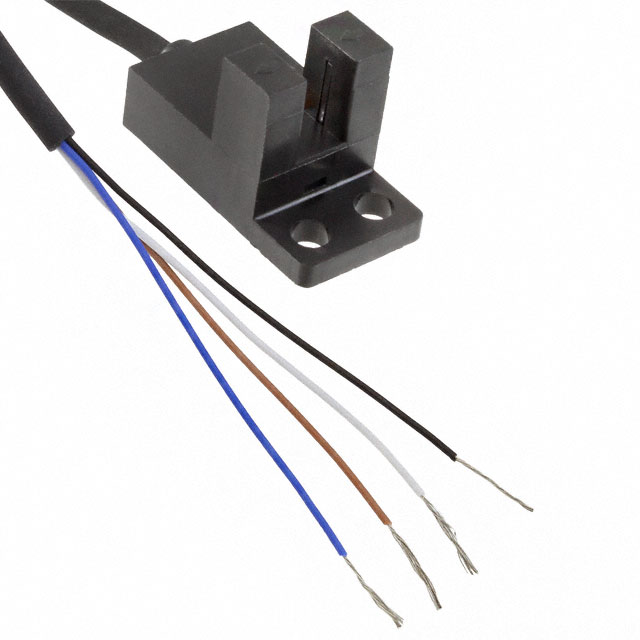

Panasonic Industrial Automation Sales PM-44 Series optical sensor. This through-beam sensor features a 5mm sensing distance and utilizes PNP output with selectable Dark-ON/Light-ON configurations. The module, with wire leads, is designed for chassis mounting. Key electrical specifications include a maximum collector current of 15 mA and a maximum DC forward current of 50 mA. The emitter-collector breakdown voltage is rated at 30 V, with a response time of 20µs. This component is widely utilized in industrial automation, robotics, and material handling applications.
Additional Information
Series: PM-44RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Wire Leads, Slot Type |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Output Configuration | PNP - Dark-ON/Light-ON - Selectable |
| Response Time | 20µs |
| Grade | - |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
| Qualification | - |
