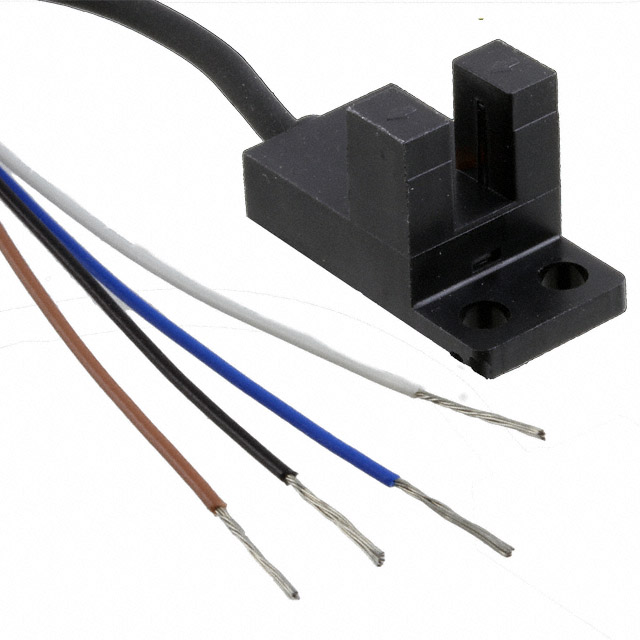

PM-Y44P
SENSOR OPT SLOT PNP MODULEManufacturer: Panasonic Industrial Automation Sales
Categories: Transistor Output
Quality Control: Learn More
Panasonic Industrial Automation Sales PM-44 Series optical sensor, part number PM-Y44P. This through-beam sensor features a 0.197" (5mm) sensing distance and a PNP output configuration with selectable Dark-ON/Light-ON modes. The component is housed in a module with wire leads, designed for slot-type mounting and chassis mounting applications. It operates with a maximum collector-emitter breakdown voltage of 30V and a maximum collector current of 15mA. The DC forward current is rated at a maximum of 50mA, with a response time of 20µs. This component is suitable for use in industrial automation and control systems.
Additional Information
Series: PM-44RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Wire Leads, Slot Type |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Output Configuration | PNP - Dark-ON/Light-ON - Selectable |
| Response Time | 20µs |
| Grade | - |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
| Qualification | - |
