PM-Y44-C3
SENSOR OPT SLOT NPN MODULEManufacturer: Panasonic Industrial Automation Sales
Categories: Transistor Output
Quality Control: Learn More

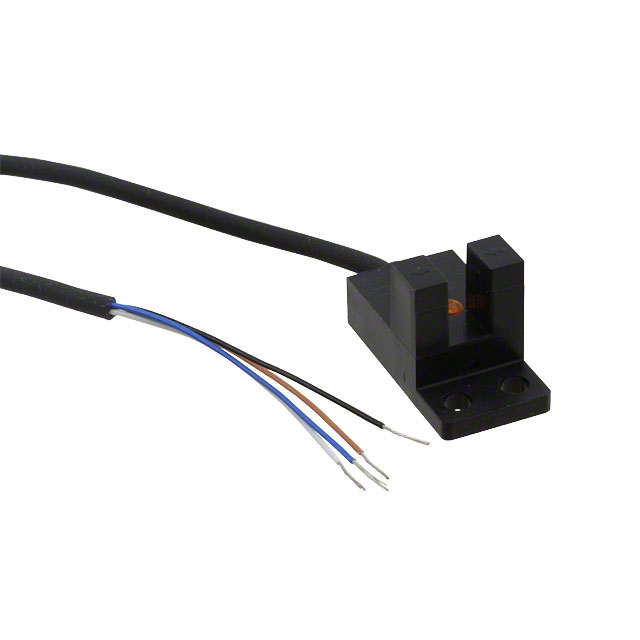

Panasonic Industrial Automation Sales PM-44 Series through-beam optical sensor, part number PM-Y44-C3. This slot-type sensor features NPN output with selectable Dark-ON/Light-ON modes, offering versatility in control applications. It provides a sensing distance of 0.197 inches (5mm) and a rapid response time of 20µs. The component is rated for a maximum collector emitter breakdown voltage of 30V and a collector current of 15mA. Designed with wire leads for easy integration, this module is suitable for mounting on chassis. Its robust design makes it applicable in industrial automation, manufacturing, and material handling systems.
Additional Information
Series: PM-44RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Wire Leads, Slot Type |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Output Configuration | NPN - Dark-ON/Light-ON - Selectable |
| Response Time | 20µs |
| Grade | - |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
| Qualification | - |
Request a Quote
