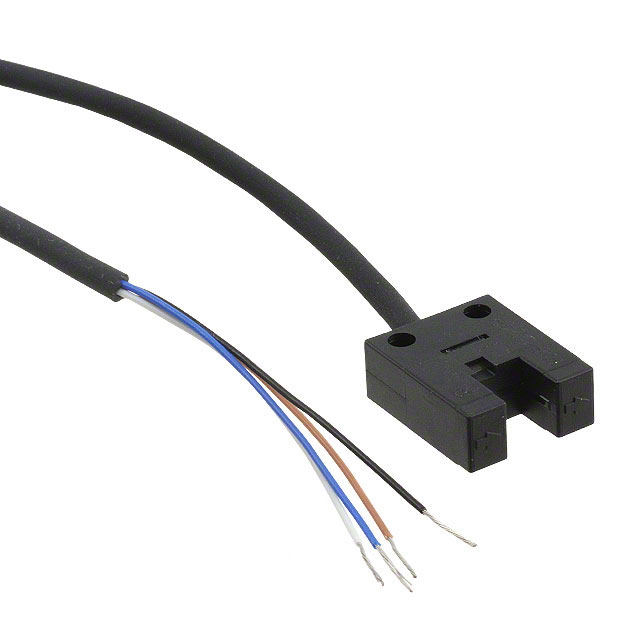

PM-U24P
SENSOR OPT SLOT PNP MODULEManufacturer: Panasonic Industrial Automation Sales
Categories: Transistor Output
Quality Control: Learn More
Panasonic Industrial Automation Sales PM-24 series optical sensor, part number PM-U24P. This through-beam sensor features a 5mm sensing distance and PNP output with selectable Dark-ON/Light-ON functionality. The module is designed with wire leads for easy integration and utilizes a slot-type package for mounting. Key electrical specifications include a maximum Collector Current (Ic) of 15 mA and a maximum DC Forward Current (If) of 50 mA. The sensor operates within a temperature range of -25°C to 55°C, offering a response time of 20µs. The maximum Collector Emitter Breakdown Voltage is 30V. This component is utilized in industrial automation, manufacturing, and control systems.
Additional Information
Series: PM-24RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Wire Leads, Slot Type |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C ~ 55°C |
| Output Configuration | PNP - Dark-ON/Light-ON - Selectable |
| Response Time | 20µs |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
