PM-U24-C3
SENSOR OPT SLOT NPN MOD 3M CBLManufacturer: Panasonic Industrial Automation Sales
Categories: Transistor Output
Quality Control: Learn More

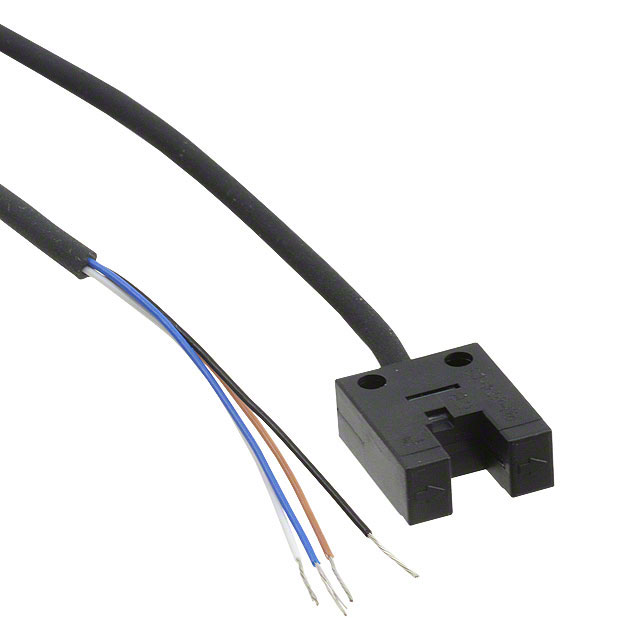

Panasonic Industrial Automation Sales PM-24 Series Through-Beam Optical Sensor, part number PM-U24-C3, offers a precise 5mm sensing distance with an NPN open-collector output. This module features selectable Dark-ON/Light-ON modes and wire leads for flexible integration. The device operates with a maximum collector emitter breakdown voltage of 30V and a collector current of 15mA. With a fast 20µs response time, it is well-suited for high-speed automation applications in industries such as manufacturing, material handling, and packaging. The chassis mount design and bulk packaging facilitate efficient assembly in production environments.
Additional Information
Series: PM-24RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Wire Leads, Slot Type |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C ~ 55°C |
| Output Configuration | NPN - Dark-ON/Light-ON - Selectable |
| Response Time | 20µs |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
