PM-T44P-C3
SENSOR OPT SLOT PNP MOD 3M CBLManufacturer: Panasonic Industrial Automation Sales
Categories: Transistor Output
Quality Control: Learn More

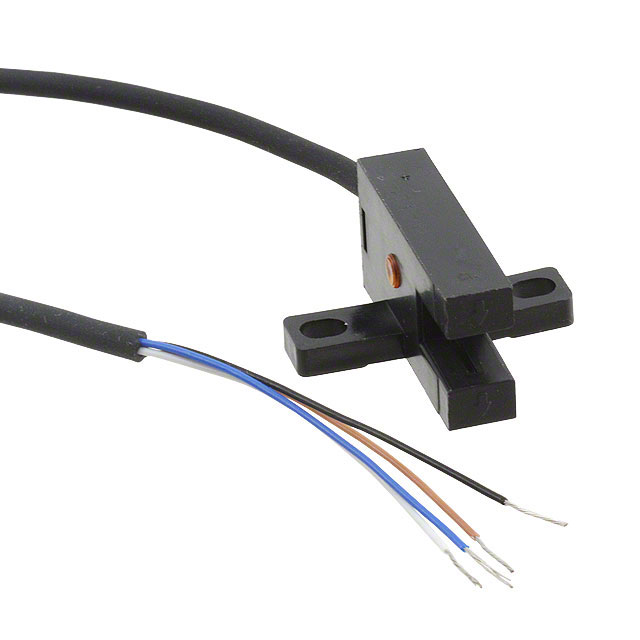

Panasonic Industrial Automation Sales PM-24 Series optical through-beam sensor, part number PM-T44P-C3. This slot-type sensor features a 0.197" (5mm) sensing distance with a PNP output configuration, offering selectable Dark-ON/Light-ON modes. Engineered for robust performance, it provides a rapid 20µs response time. The component is supplied with wire leads and housed in a module for chassis mounting. Maximum collector current is rated at 15 mA, with a maximum collector-emitter breakdown voltage of 30 V. Typical applications include automated manufacturing, material handling, and industrial automation systems requiring precise object detection.
Additional Information
Series: PM-24RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Wire Leads, Slot Type |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C ~ 55°C |
| Output Configuration | PNP - Dark-ON/Light-ON - Selectable |
| Response Time | 20µs |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
