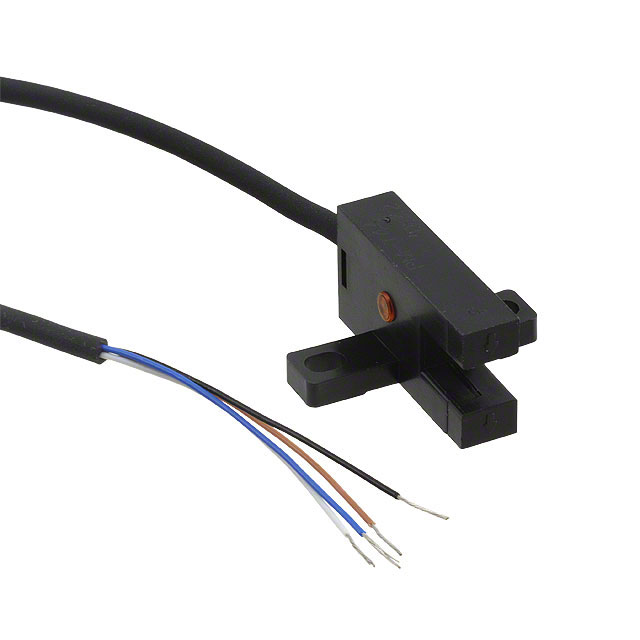

PM-T44
SENSOR OPT SLOT NPN MODULEManufacturer: Panasonic Industrial Automation Sales
Categories: Transistor Output
Quality Control: Learn More
Panasonic Industrial Automation Sales PM-44, an optical sensor module featuring a through-beam sensing method with a 0.197" (5mm) sensing distance. This component utilizes an NPN output configuration, offering selectable Dark-ON and Light-ON modes. The module is designed for chassis mounting and comes with wire leads. Key electrical specifications include a maximum collector current (Ic) of 15 mA and a maximum DC forward current (If) of 50 mA. The collector-emitter breakdown voltage is rated at a maximum of 30 V. With a response time of 20µs, this sensor is suitable for applications requiring fast detection. Operating temperature ranges from -25°C to 55°C. This component is commonly found in industrial automation and manufacturing environments.
Additional Information
Series: PM-44RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Wire Leads, Slot Type |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C ~ 55°C |
| Output Configuration | NPN - Dark-ON/Light-ON - Selectable |
| Response Time | 20µs |
| Grade | - |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
| Qualification | - |
