PM-R54
SENSOR OPT SLOT NPN MODULEManufacturer: Panasonic Industrial Automation Sales
Categories: Transistor Output
Quality Control: Learn More

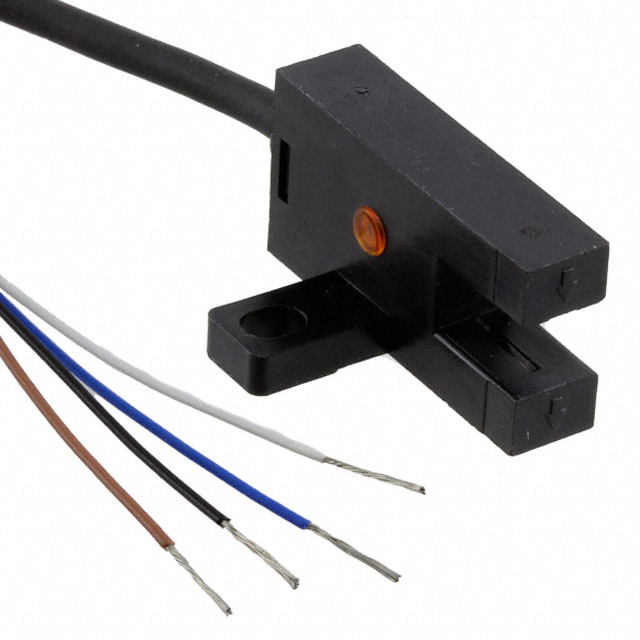

Panasonic Industrial Automation Sales PM-54 series optical sensor, part number PM-R54. This through-beam sensor features a 5mm sensing distance and an NPN output configuration with selectable Dark-ON/Light-ON modes. Rated for a maximum collector current of 15mA and a collector-emitter breakdown voltage of 30V, it operates within a temperature range of -25°C to 55°C. The module is designed with wire leads for chassis mounting and offers a response time of 20µs. This component is suitable for applications in industrial automation, automotive, and consumer electronics sectors requiring precise object detection.
Additional Information
Series: PM-54RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Wire Leads, Slot Type |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C ~ 55°C |
| Output Configuration | NPN - Dark-ON/Light-ON - Selectable |
| Response Time | 20µs |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
