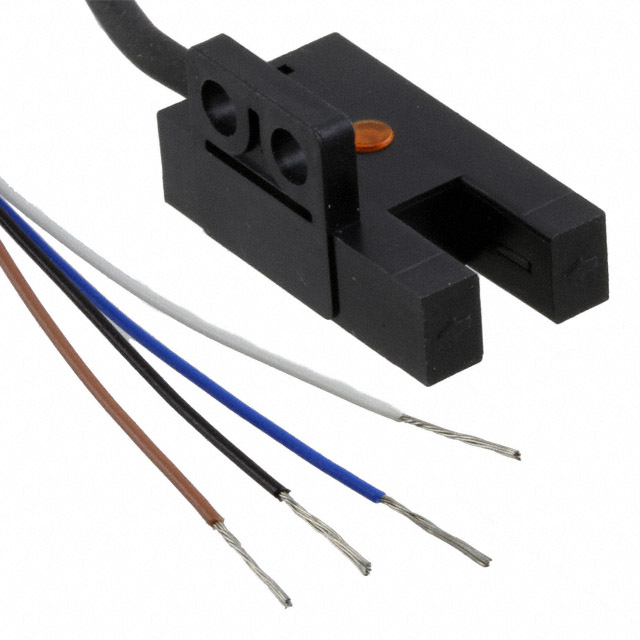

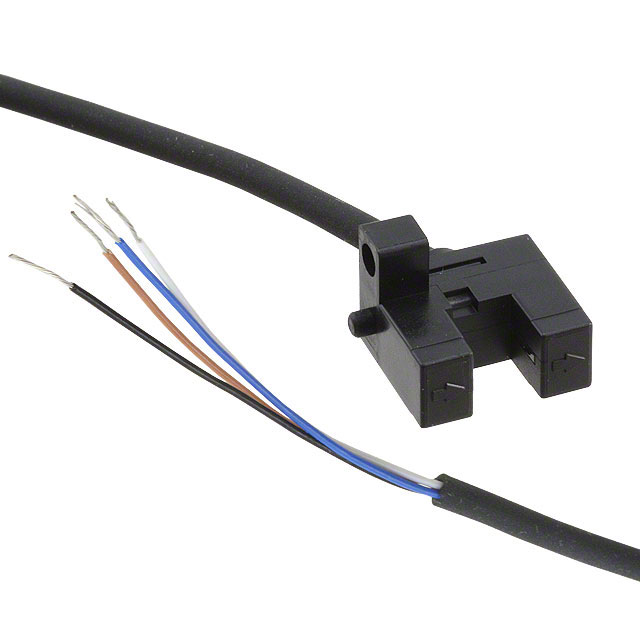

PM-R44P-C3
SENSOR OPT SLOT PNP MODULEManufacturer: Panasonic Industrial Automation Sales
Categories: Transistor Output
Quality Control: Learn More
Panasonic Industrial Automation Sales PM-44 Series optical through-beam sensor, part number PM-R44P-C3, features a 5mm sensing distance. This PNP output module offers selectable Dark-ON/Light-ON modes, facilitating flexible system integration. With a response time of 20µs, it is suitable for high-speed applications. The sensor operates with a maximum collector current of 15mA and a maximum DC forward current of 50mA, supporting a collector-emitter breakdown voltage of 30V. Mounting is via chassis mount, and it utilizes wire leads with a slot-type package. This component finds application in industrial automation, material handling, and packaging machinery.
Additional Information
Series: PM-44RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Wire Leads, Slot Type |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C ~ 55°C |
| Output Configuration | PNP - Dark-ON/Light-ON - Selectable |
| Response Time | 20µs |
| Grade | - |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
| Qualification | - |
Request a Quote
Clients Also Buy

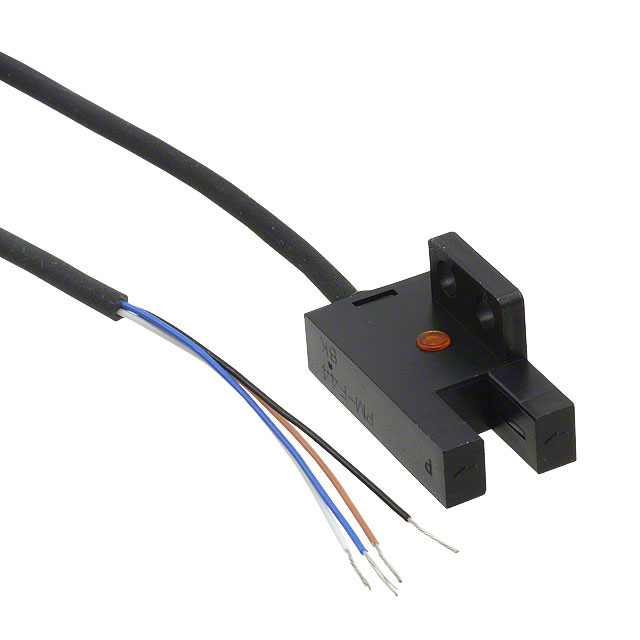

PM-F44
SENSOR OPT SLOT NPN MODULE

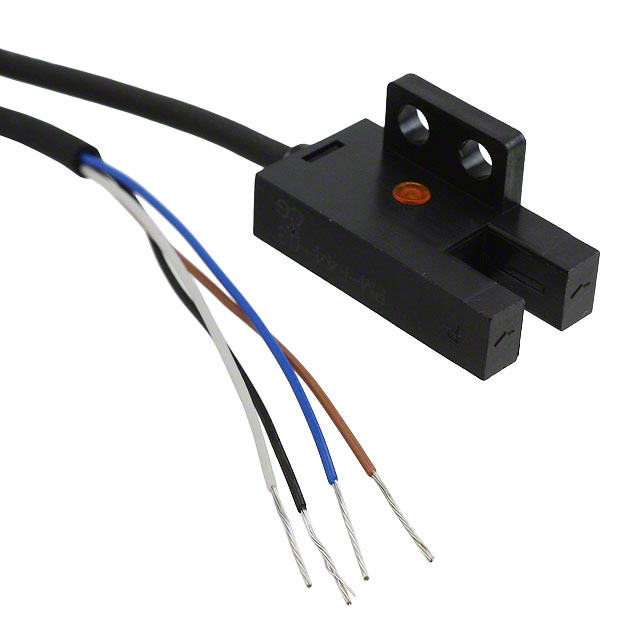

PM-F44-C3
SENSOR OPT SLOT NPN MODULE

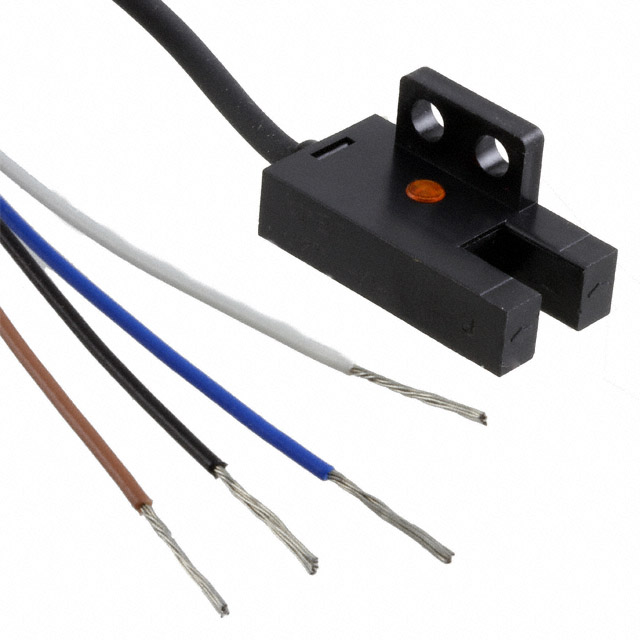

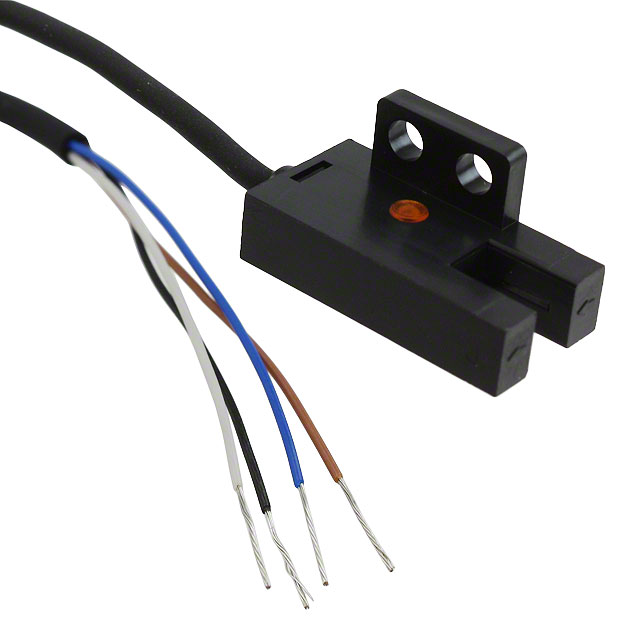

PM-F44P
