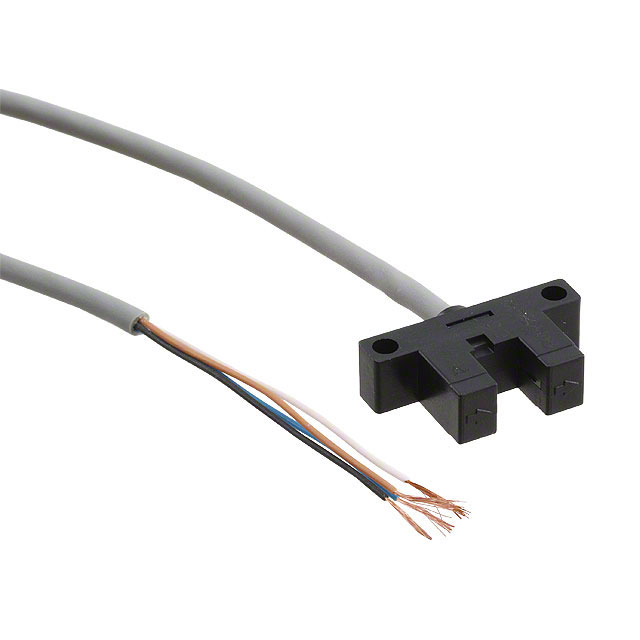

PM-K24-R
SENSOR OPT SLOT NPN MODULEManufacturer: Panasonic Industrial Automation Sales
Categories: Transistor Output
Quality Control: Learn More
Panasonic Industrial Automation Sales PM-24 series optical sensor, part number PM-K24-R. This through-beam slot sensor features a 5mm sensing distance and an NPN open-collector output with selectable Dark-ON/Light-ON modes. Designed for chassis mounting, the module utilizes wire leads for connection and operates within a temperature range of -25°C to 55°C. The sensor has a maximum collector current of 15mA and a maximum forward current of 50mA. Its response time is 20µs, and the maximum collector-emitter breakdown voltage is 30V. This component is suitable for applications in industrial automation and material handling.
Additional Information
Series: PM-24RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Wire Leads, Slot Type |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Chassis Mount |
| Operating Temperature | -25°C ~ 55°C |
| Output Configuration | NPN - Dark-ON/Light-ON - Selectable |
| Response Time | 20µs |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
Request a Quote
Clients Also Buy

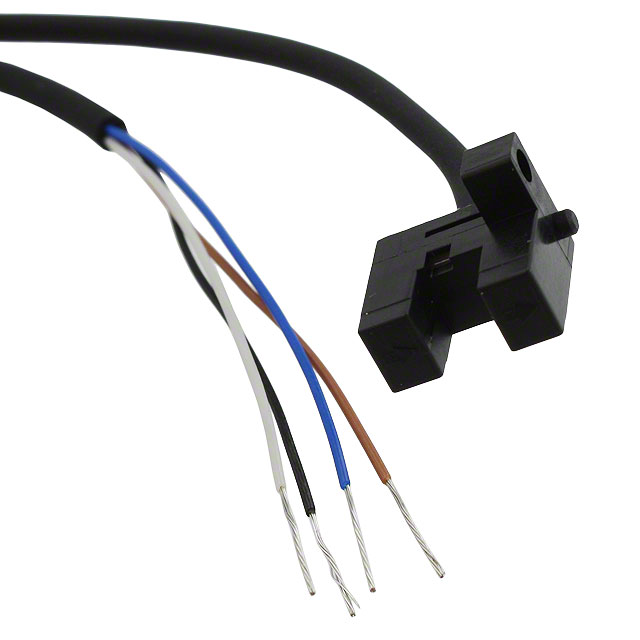

PM-F24
SENSOR OPT SLOT NPN MODULE

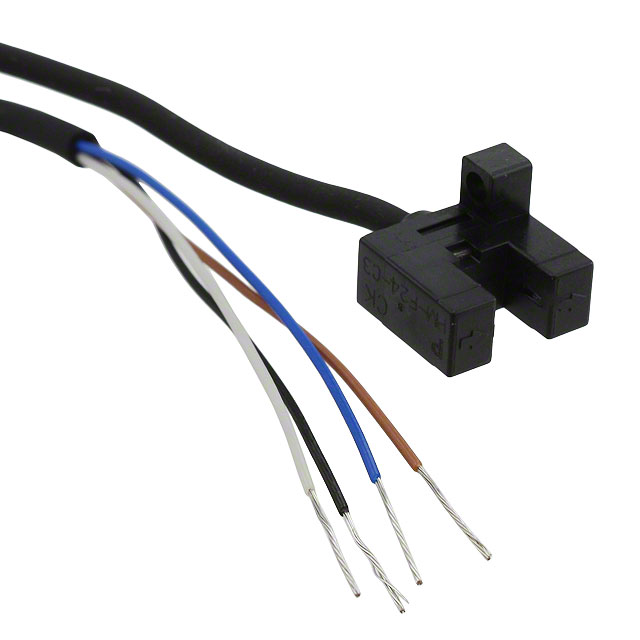

PM-F24-C3
SENSOR OPT SLOT NPN MODULE

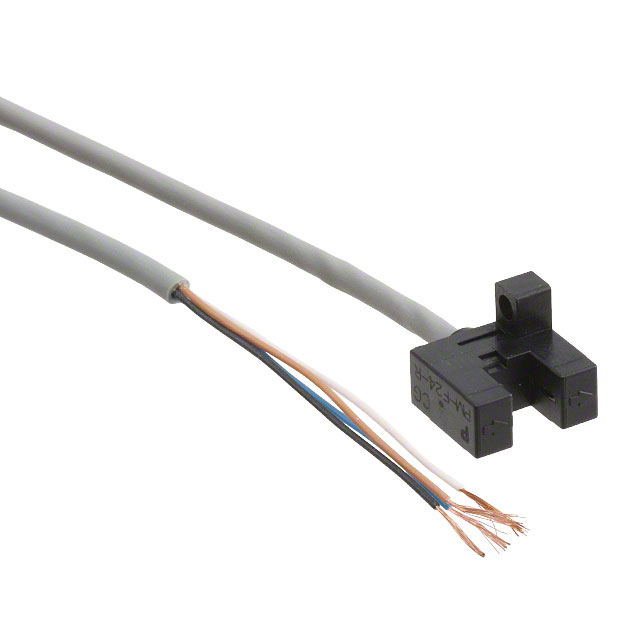

PM-F24-R
