FM-253-4
DIGITAL FLOW SENSOR 5L/MIN NPNManufacturer: Panasonic Industrial Automation Sales
Categories: Flow Sensors
Quality Control: Learn More

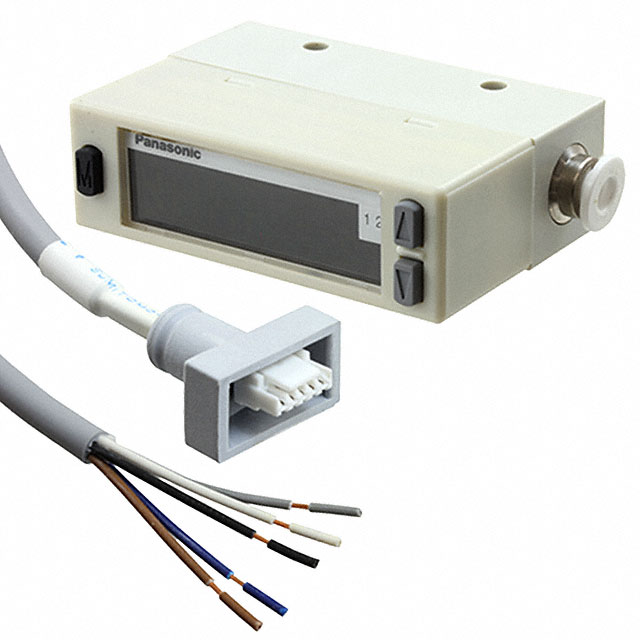

Panasonic Industrial Automation Sales FM-200 Series FM-253-4 is a digital gas flow sensor with a nominal flow rate of 5 liters per minute. This component features a female port connection with a 0.157" (4mm) diameter, constructed from plastic for its body material. Designed for operation within a temperature range of 0°C to 50°C, the FM-253-4 accepts an input voltage between 12V and 24V. Its NPN output provides digital signaling capabilities. This sensor is suitable for applications in process control and automation systems where precise gas flow monitoring is critical. The product is supplied in box packaging.
Additional Information
Series: FM-200RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Input | 12V ~ 24V |
| Operating Temperature | 0°C ~ 50°C |
| Switch Function/Rating | - |
| Material - Body | Plastic |
| Port Size | Female, 0.157"" (4mm) |
| Flow Sensor Type | Gas |
