MA27V1200L
DIODE VARIABLE CAP 8V SSS-MINIManufacturer: Panasonic Electronic Components
Categories: Variable Capacitance (Varicaps, Varactors)
Quality Control: Learn More

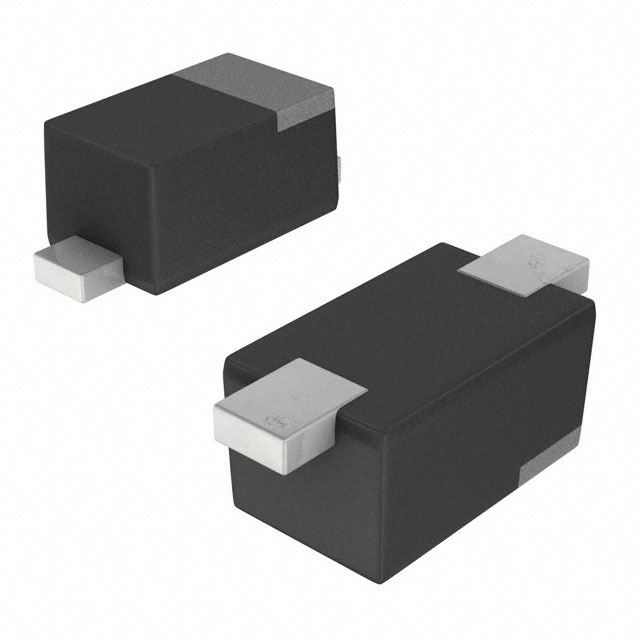

Panasonic Electronic Components MA27V1200L, a single varactor diode, is designed for high-frequency applications. This component features a reverse breakdown voltage of 8 V and a capacitance of 2.14 pF at 4 V and 1 MHz. The capacitance ratio, measured as C1/C4, is 1.9. Packaged in a SSSMini2-F1 (2-SMD, Flat Leads) for surface mounting, it operates within a temperature range up to 125°C. The MA27V1200L is supplied on tape and reel. This device is utilized in RF tuning circuits, voltage-controlled oscillators (VCOs), and frequency multipliers across telecommunications and consumer electronics industries.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Diode Type | Single |
| Operating Temperature | 125°C (TJ) |
| Capacitance @ Vr, F | 2.14pF @ 4V, 1MHz |
| Q @ Vr, F | - |
| Capacitance Ratio Condition | C1/C4 |
| Supplier Device Package | SSSMini2-F1 |
| Voltage - Peak Reverse (Max) | 8 V |
| Capacitance Ratio | 1.9 |
