MA26V1100A
DIODE VARIABLE CAP 8V 1006Manufacturer: Panasonic Electronic Components
Categories: Variable Capacitance (Varicaps, Varactors)
Quality Control: Learn More

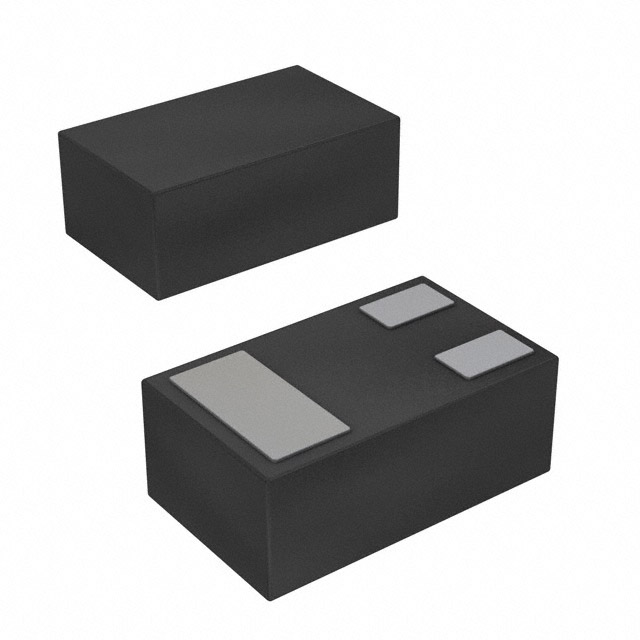

Panasonic Electronic Components MA26V1100A is a single varactor diode designed for surface mount applications. This component, designated SC-101 or SOT-883 with a supplier package of ML3-N2, offers a peak reverse voltage of 8 V. Its capacitance at 4 V and 1 MHz is 1.34 pF, with a capacitance ratio of 2.34 (C1/C4). The MA26V1100A operates within a temperature range of -40°C to 125°C. It is supplied in a Tape & Reel (TR) package. This diode is suitable for applications in voltage-controlled oscillators, frequency multipliers, and tuning circuits across various electronic systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-101, SOT-883 |
| Mounting Type | Surface Mount |
| Diode Type | Single |
| Operating Temperature | 125°C (TJ) |
| Capacitance @ Vr, F | 1.34pF @ 4V, 1MHz |
| Q @ Vr, F | - |
| Capacitance Ratio Condition | C1/C4 |
| Supplier Device Package | ML3-N2 |
| Voltage - Peak Reverse (Max) | 8 V |
| Capacitance Ratio | 2.34 |
