CNA1007H
SENSOR OPT SLOT PHOTOTRAN PCB MTManufacturer: Panasonic Electronic Components
Categories: Transistor Output
Quality Control: Learn More

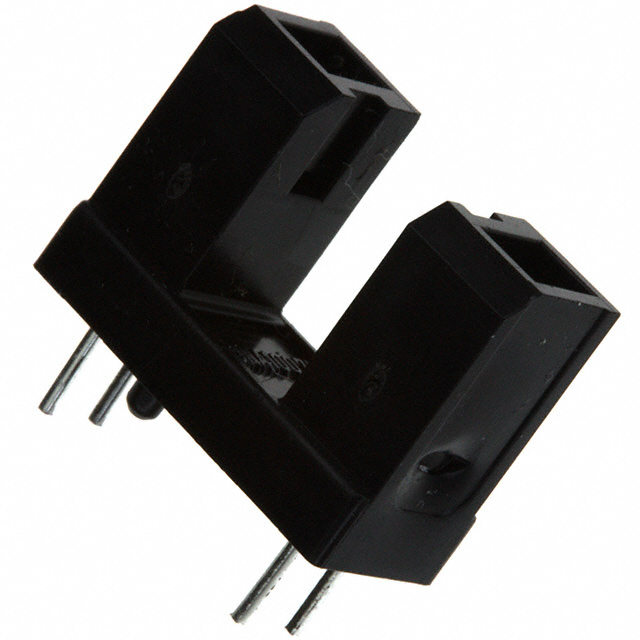

Panasonic Electronic Components CNA1007H is a through-beam optical sensor featuring a phototransistor output. This component is designed for PCB mounting and offers a sensing distance of 0.197 inches (5mm). Key electrical specifications include a maximum collector current (Ic) of 20 mA and a maximum DC forward current (If) of 50 mA. The collector-emitter breakdown voltage (Vce) is rated at a maximum of 30 V. With a typical response time of 5µs for both turn-on and turn-off, this sensor is suitable for applications requiring precise detection. The operating temperature range is from -25°C to 85°C. This component finds application in industrial automation, consumer electronics, and automotive systems. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PCB Mount |
| Sensing Distance | 0.197"" (5mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | 5µs, 5µs |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
Request a Quote
Clients Also Buy
CNZ1112
SENSOR OPT SLOT PHOTOTRAN PCB MT

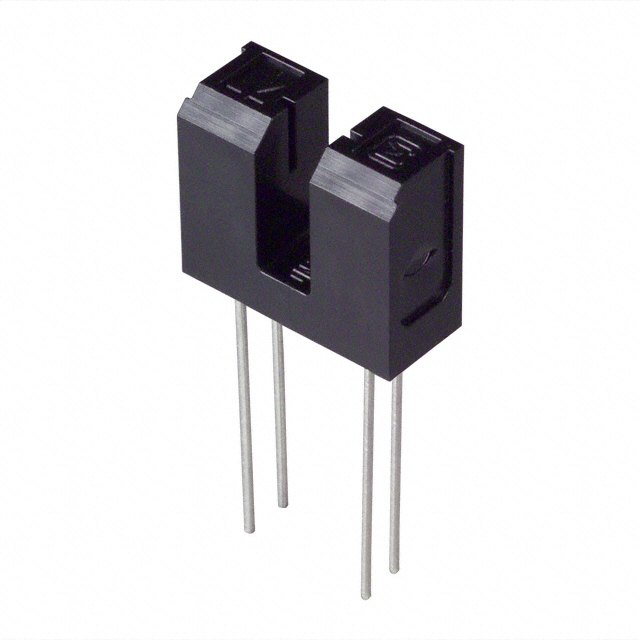

CNZ1021
SENSOR OPT SLOT PHOTOTRAN PCB MT

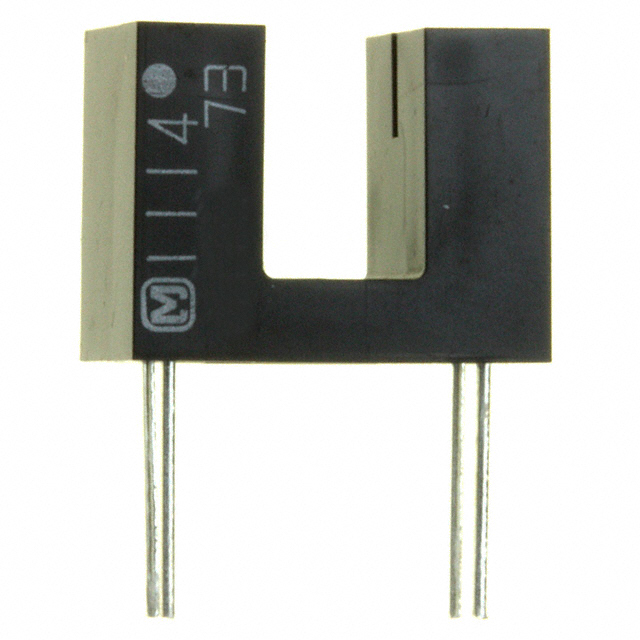

CNA1012K
