DN8897
MAGNETIC SWITCH SPEC PURP 3SIPManufacturer: Panasonic Electronic Components
Categories: Switches (Solid State)
Quality Control: Learn More
Panasonic Electronic Components DN8897 is a Hall Effect digital switch. This special purpose device, housed in a 3-SIP package, features an open collector output and is designed for through-hole mounting. The DN8897 operates with a supply voltage ranging from 4.5V to 16V and a maximum supply current of 6mA. Key features include temperature compensation, ensuring stable operation across its specified temperature range of -40°C to 100°C (TA). This component is utilized in various industrial applications requiring precise magnetic sensing and switching capabilities.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 3-SSIP |
| Output Type | Open Collector |
| Polarization | - |
| Mounting Type | Through Hole |
| Function | Special Purpose |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Supply | 4.5V ~ 16V |
| Technology | Hall Effect |
| Sensing Range | - |
| Current - Output (Max) | - |
| Current - Supply (Max) | 6mA |
| Supplier Device Package | 3-SIP |
| Test Condition | - |
Request a Quote
Clients Also Buy
DN6852-A
MAGNETIC SWITCH UNIPOLAR 3SIP
DN6847SE
MAGNETIC SWITCH BIPOLAR 3SSIP

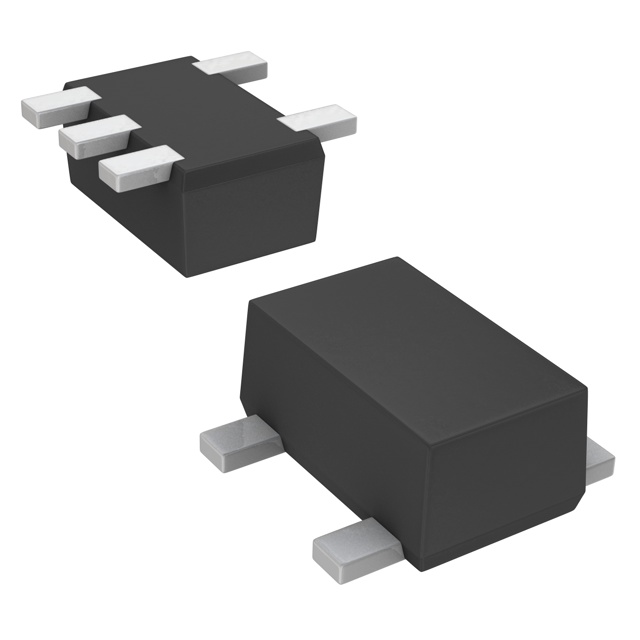

AN48836B-NL
