DN6849S

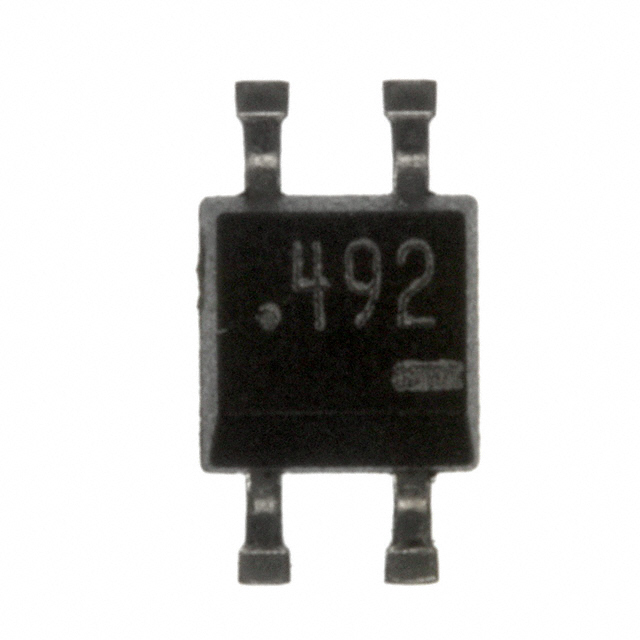

MAGNETIC SWITCH BIPOLAR 4ESOPManufacturer: Panasonic Electronic Components
Categories: Switches (Solid State)
Quality Control: Learn More
Panasonic Electronic Components DN6849S is a bipolar Hall effect digital switch featuring an open collector output. This device, part of the solid-state switches category, utilizes Hall effect technology for magnetic field detection. It is supplied in a 4-ESOP package, suitable for surface mounting via its 4-SMD Gull Wing configuration. The switch offers a supply voltage range of 4.5V to 16V with a maximum supply current of 6mA and a maximum output current of 10µA. Key features include temperature compensation, ensuring consistent performance across its operating temperature range of -40°C to 100°C (TA). The sensing range is specified at 17mT trip and 17.5mT release, with operation confirmed at 25°C. This component is suitable for applications requiring precise magnetic switching, often found in consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SMD, Gull Wing |
| Output Type | Open Collector |
| Polarization | North Pole |
| Mounting Type | Surface Mount |
| Function | Bipolar Switch |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Supply | 4.5V ~ 16V |
| Technology | Hall Effect |
| Sensing Range | -17mT Trip, 17.5mT Release |
| Current - Output (Max) | 10µA |
| Current - Supply (Max) | 6mA |
| Supplier Device Package | 4-ESOP |
| Test Condition | 25°C |
