AN5870K

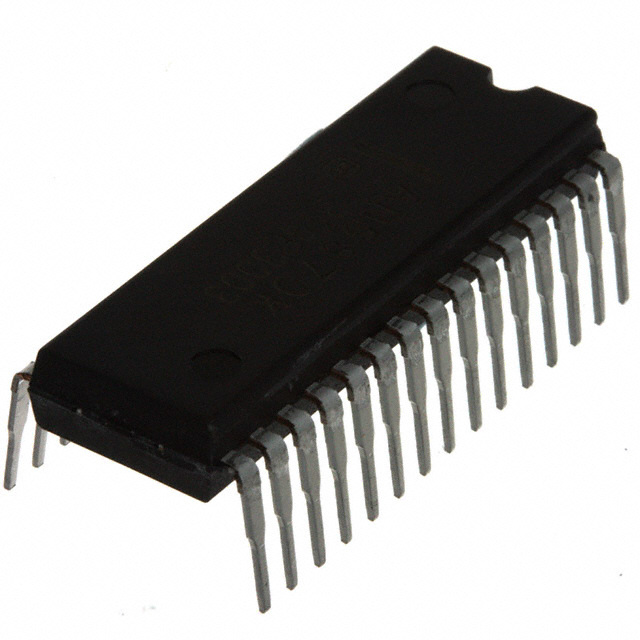

IC SWITCH VIDEO RGB 2:1 30SDIPManufacturer: Panasonic Electronic Components
Categories: Special Purpose
Quality Control: Learn More
Panasonic Electronic Components AN5870K is a 4-channel video switch IC designed for RGB signal routing. This component utilizes a 2:1 multiplexer/demultiplexer configuration per channel, facilitating efficient video signal selection. The AN5870K is housed in a 30-SDIP (0.400", 10.16mm) package, suitable for through-hole mounting. Its operating temperature range is -20°C to 70°C (TA). The device supports single supply voltages of 4.5V to 5.25V or 10.5V to 12.6V, and dual supplies. This analog switch is commonly employed in video processing applications and broadcast equipment.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | RGB |
| Packaging | Tube |
| Package / Case | 30-SDIP (0.400"", 10.16mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Applications | Video |
| On-State Resistance (Max) | - |
| -3db Bandwidth | - |
| Supplier Device Package | 30-SDIP |
| Voltage - Supply, Single (V+) | 4.5V ~ 5.25, 10.5V ~ 12.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Channels | 4 |
