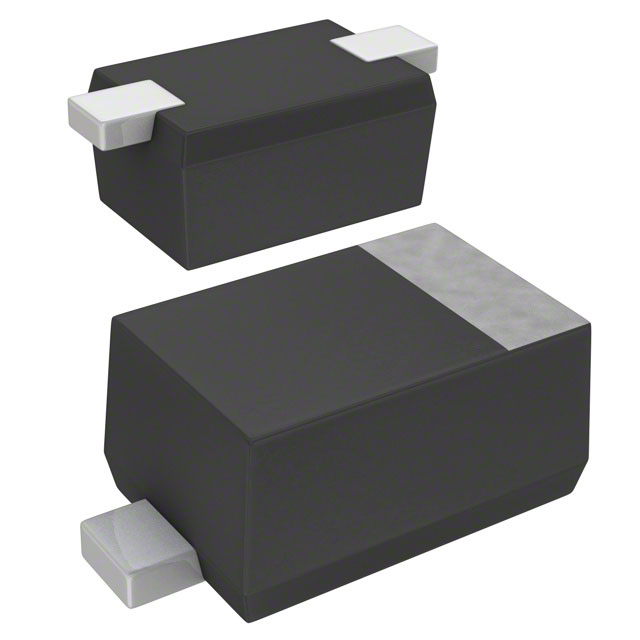

MAZS0300LL
DIODE ZENER 2.9V 150MW SSMINI2Manufacturer: Panasonic Electronic Components
Categories: Single Zener Diodes
Quality Control: Learn More
Panasonic Electronic Components MAZS0300LL is a Zener Diode offering a nominal Zener voltage of 2.9 V with a ±4% tolerance. This component is rated for a maximum power dissipation of 150 mW and features a low reverse leakage current of 50 µA at 1 V. The impedance at the Zener test current is a maximum of 120 Ohms. It is supplied in the SSMini2-F1 package, which corresponds to the SC-79, SOD-523 footprint, suitable for surface mount applications. The MAZS0300LL finds utility in various applications including power management and voltage regulation circuits within the industrial and consumer electronics sectors. The device is provided in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±4% |
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-79, SOD-523 |
| Mounting Type | Surface Mount |
| Operating Temperature | - |
| Voltage - Zener (Nom) (Vz) | 2.9 V |
| Impedance (Max) (Zzt) | 120 Ohms |
| Supplier Device Package | SSMini2-F1 |
| Power - Max | 150 mW |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA |
| Current - Reverse Leakage @ Vr | 50 µA @ 1 V |
