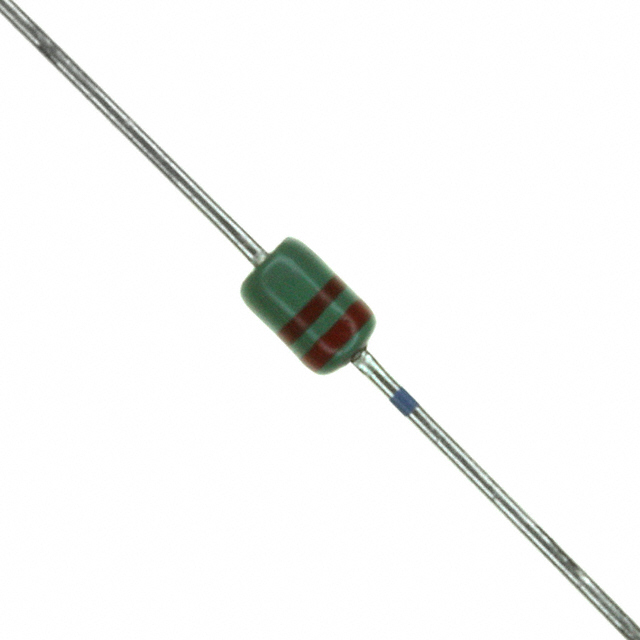

MAZ42200MF
DIODE ZENER 22V 370MW DO34Manufacturer: Panasonic Electronic Components
Categories: Single Zener Diodes
Quality Control: Learn More
Panasonic Electronic Components MAZ42200MF is a 22V Zener diode with a power dissipation rating of 370mW. This component features a ±6% voltage tolerance and a low reverse leakage current of 50nA at 15V. Its maximum impedance (Zzt) is 55 Ohms. The MAZ42200MF is housed in a DO-34 axial package (DO-204AG) and is supplied on Tape & Box (TB). It is commonly utilized in voltage regulation and transient suppression applications across various industries including consumer electronics and industrial control systems. The forward voltage at 10mA is a maximum of 900mV.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Tolerance | ±6% |
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Voltage - Zener (Nom) (Vz) | 22 V |
| Impedance (Max) (Zzt) | 55 Ohms |
| Supplier Device Package | DO34-A2 |
| Power - Max | 370 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 50 nA @ 15 V |
