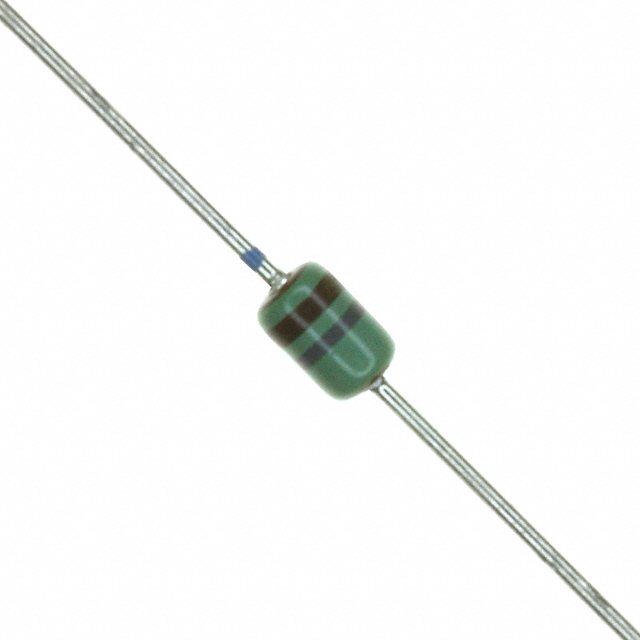

MAZ41800MF
DIODE ZENER 18V 370MW DO34Manufacturer: Panasonic Electronic Components
Categories: Single Zener Diodes
Quality Control: Learn More
Panasonic Electronic Components Zener Diode, MAZ41800MF, offers a nominal Zener voltage of 18 V with a ±6% tolerance. This through-hole component features a maximum power dissipation of 370 mW and is housed in a DO-204AG, DO-34, Axial package, specifically the DO34-A2 supplier device package. It exhibits a low reverse leakage current of 50 nA at 13 V and a maximum Zener impedance (Zzt) of 45 Ohms. The forward voltage (Vf) is 900 mV at 10 mA. This device is commonly utilized in voltage regulation and surge suppression applications across various electronics manufacturing sectors. The MAZ41800MF is supplied in Tape & Box (TB) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Tolerance | ±6% |
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Voltage - Zener (Nom) (Vz) | 18 V |
| Impedance (Max) (Zzt) | 45 Ohms |
| Supplier Device Package | DO34-A2 |
| Power - Max | 370 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 50 nA @ 13 V |
Request a Quote
