MAZ41600MF
DIODE ZENER 16V 370MW DO34Manufacturer: Panasonic Electronic Components
Categories: Single Zener Diodes
Quality Control: Learn More

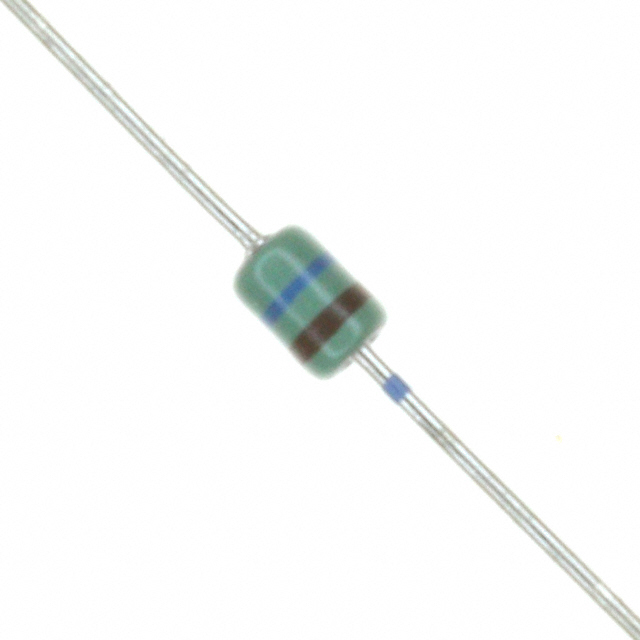

Panasonic Electronic Components MAZ41600MF is a 16V Zener diode with a power dissipation rating of 370mW. This through-hole component, housed in a DO-34 axial package (DO-204AG), offers a Zener impedance of 40 Ohms maximum at its nominal voltage. The reverse leakage current is specified as 50 nA at 11V, and the forward voltage drop is a maximum of 900mV at 10mA. The diode features a ±6% voltage tolerance. This component is commonly utilized in voltage regulation and transient suppression applications across various industries, including automotive and industrial controls. It is supplied in Cut Tape (CT) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Tolerance | ±6% |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Voltage - Zener (Nom) (Vz) | 16 V |
| Impedance (Max) (Zzt) | 40 Ohms |
| Supplier Device Package | DO34-A2 |
| Power - Max | 370 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 50 nA @ 11 V |
