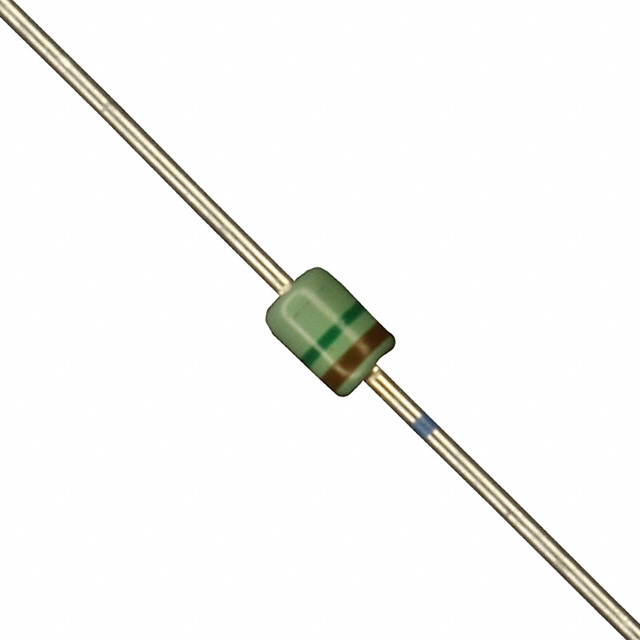

MAZ41500MF
DIODE ZENER 15V 370MW DO34Manufacturer: Panasonic Electronic Components
Categories: Single Zener Diodes
Quality Control: Learn More
Panasonic Electronic Components MAZ41500MF is a Zener diode featuring a nominal breakdown voltage of 15V with a tight tolerance of ±6%. This component offers a maximum power dissipation of 370 mW and is packaged in a DO-34 axial lead package, suitable for through-hole mounting. The MAZ41500MF exhibits a low reverse leakage current of 50 nA at 10V and a maximum Zener impedance (Zzt) of 30 Ohms. Its forward voltage (Vf) is specified at 900 mV maximum at 10 mA. This device is commonly employed in voltage regulation and transient suppression circuits across various industries including telecommunications, consumer electronics, and industrial control systems. The MAZ41500MF is provided in Tape & Box (TB) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Tolerance | ±6% |
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Voltage - Zener (Nom) (Vz) | 15 V |
| Impedance (Max) (Zzt) | 30 Ohms |
| Supplier Device Package | DO34-A2 |
| Power - Max | 370 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 50 nA @ 10 V |
