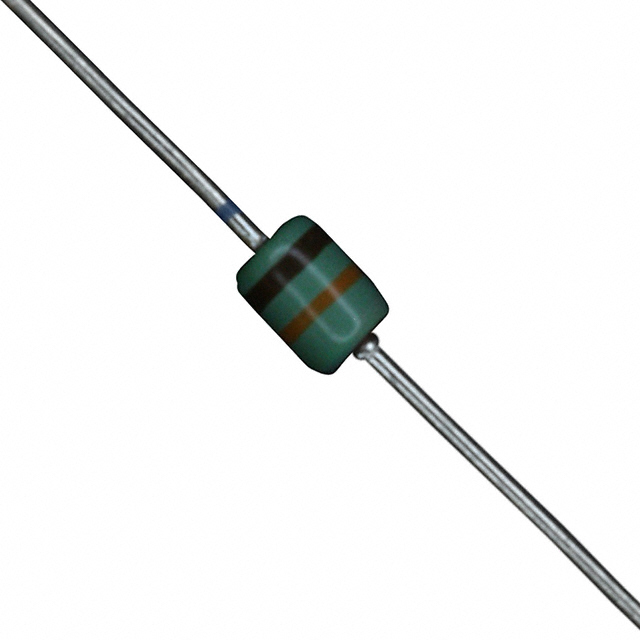

MAZ41300MF
DIODE ZENER 13V 370MW DO34Manufacturer: Panasonic Electronic Components
Categories: Single Zener Diodes
Quality Control: Learn More
Panasonic Electronic Components MAZ41300MF is a 13V Zener diode with a maximum power dissipation of 370mW. This through-hole component, housed in a DO-34 axial package (DO-204AG), offers a ±6% voltage tolerance. It exhibits a typical Zener impedance (Zzt) of 30 Ohms and a reverse leakage current of 100 nA at 9V. The forward voltage (Vf) is a maximum of 900mV at 10mA. This device is supplied in Tape & Box packaging. It finds application in power management circuits and voltage regulation within industrial automation and consumer electronics sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Tolerance | ±6% |
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Voltage - Zener (Nom) (Vz) | 13 V |
| Impedance (Max) (Zzt) | 30 Ohms |
| Supplier Device Package | DO34-A2 |
| Power - Max | 370 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 9 V |
