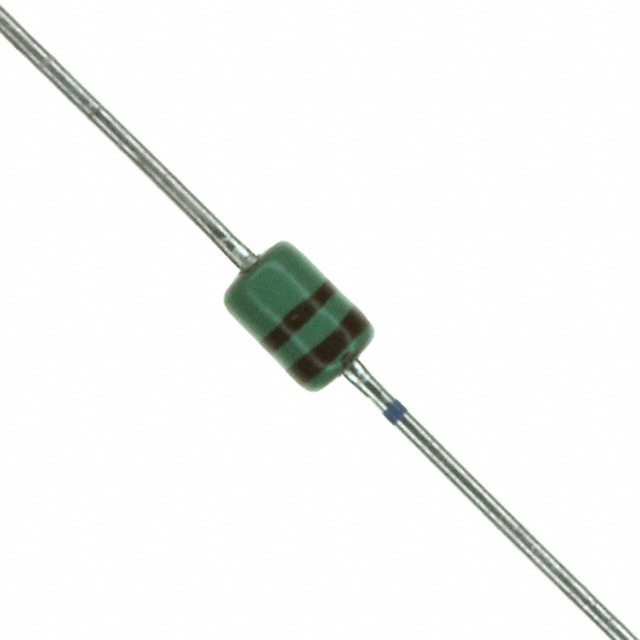

MAZ41100MF
DIODE ZENER 11V 370MW DO34Manufacturer: Panasonic Electronic Components
Categories: Single Zener Diodes
Quality Control: Learn More
Panasonic Electronic Components MAZ41100MF is a Zener diode designed for precise voltage regulation. This through-hole component features a nominal Zener voltage of 11 V with a ±5% tolerance. With a maximum power dissipation of 370 mW, it is suitable for applications requiring stable reference voltages. The device exhibits a low reverse leakage current of 100 nA at 7 V and a typical impedance (Zzt) of 20 Ohms. The MAZ41100MF is packaged in a DO-34 axial lead configuration, often found in consumer electronics and industrial control systems. The forward voltage (Vf) is a maximum of 900 mV at 10 mA.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Voltage - Zener (Nom) (Vz) | 11 V |
| Impedance (Max) (Zzt) | 20 Ohms |
| Supplier Device Package | DO34-A2 |
| Power - Max | 370 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 7 V |
