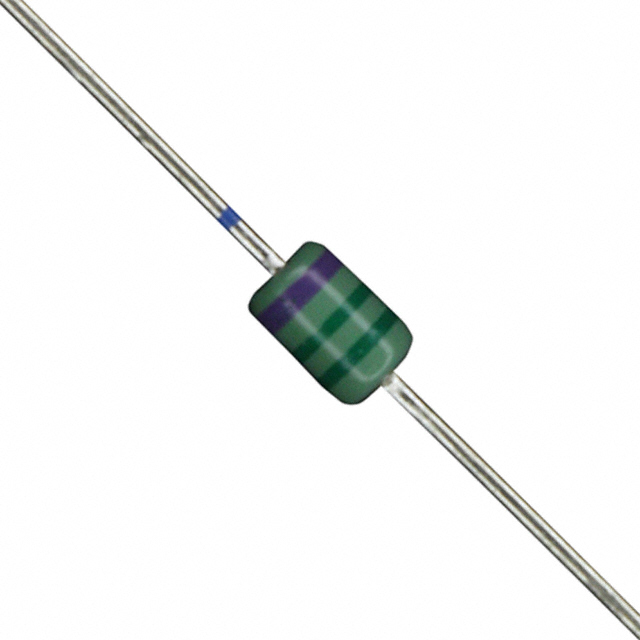

MAZ40750MF
DIODE ZENER 7.5V 370MW DO34Manufacturer: Panasonic Electronic Components
Categories: Single Zener Diodes
Quality Control: Learn More
Panasonic Electronic Components MAZ40750MF is a through-hole Zener diode with a nominal breakdown voltage of 7.5 V and a power dissipation rating of 370 mW. This component features a ±6% tolerance for its Zener voltage and is housed in a DO-204AG (DO-34) axial package. The reverse leakage current at 5 V is specified as 1 µA, with a maximum Zener impedance (Zzt) of 15 Ohms. The forward voltage (Vf) is a maximum of 900 mV at 10 mA. This device is commonly employed in voltage regulation and stabilization circuits across various industrial applications. It is supplied in Tape & Box (TB) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Tolerance | ±6% |
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Voltage - Zener (Nom) (Vz) | 7.5 V |
| Impedance (Max) (Zzt) | 15 Ohms |
| Supplier Device Package | DO34-A2 |
| Power - Max | 370 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 1 µA @ 5 V |
