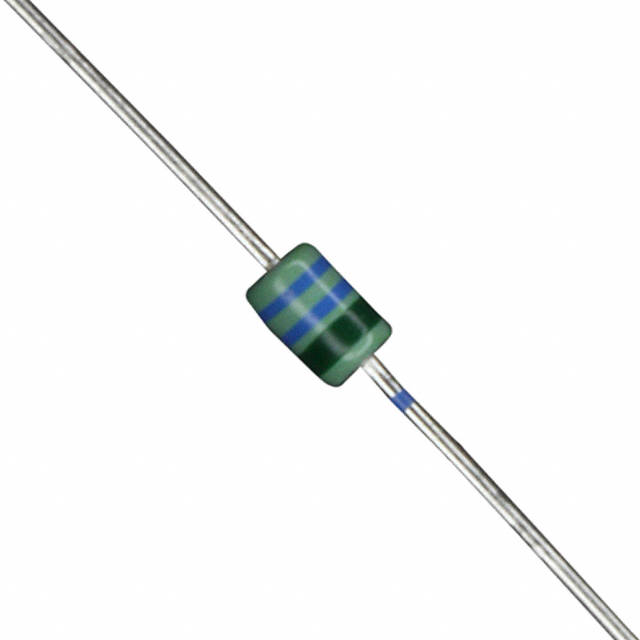

MAZ40560MF
DIODE ZENER 5.6V 370MW DO34Manufacturer: Panasonic Electronic Components
Categories: Single Zener Diodes
Quality Control: Learn More
The Panasonic Electronic Components MAZ40560MF is a Zener diode featuring a nominal breakdown voltage of 5.6V with a ±6% tolerance. This through-hole component is housed in a DO-204AG, DO-34, Axial package, also referred to as DO34-A2. It offers a maximum power dissipation of 370 mW and a typical Zener impedance of 40 Ohms at its rated voltage. The diode exhibits a low reverse leakage current of 1 µA at 2V and a forward voltage drop of 900 mV at 10 mA. This component is commonly utilized in voltage regulation and surge suppression applications across various industries, including automotive, consumer electronics, and industrial automation. The MAZ40560MF is supplied in Cut Tape (CT) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Tolerance | ±6% |
| Packaging | Cut Tape (CT) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
| Impedance (Max) (Zzt) | 40 Ohms |
| Supplier Device Package | DO34-A2 |
| Power - Max | 370 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 1 µA @ 2 V |
