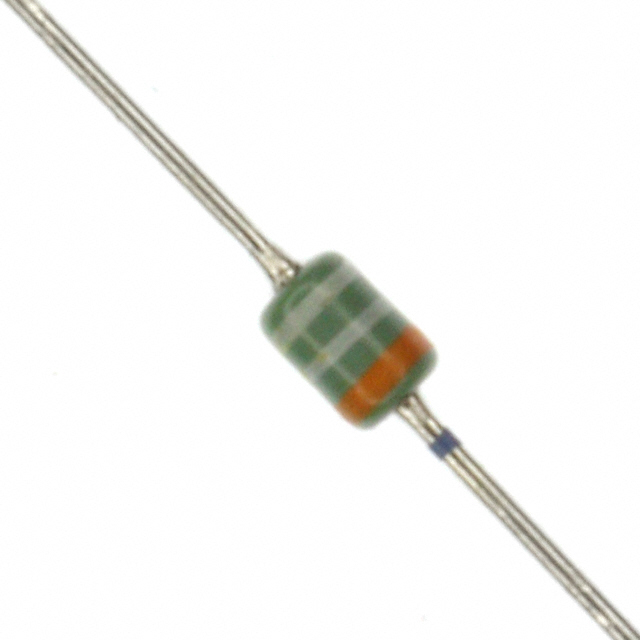

MAZ40390MF
DIODE ZENER 3.9V 370MW DO34Manufacturer: Panasonic Electronic Components
Categories: Single Zener Diodes
Quality Control: Learn More
Panasonic Electronic Components MAZ40390MF is a 3.9V Zener diode with a power rating of 370mW. This through-hole component, packaged in a DO-34-A2 (DO-204AG) axial package, features a tight tolerance of ±5%. It exhibits a maximum reverse leakage current of 10 µA at 1V and a Zener impedance (Zzt) of 100 Ohms. The forward voltage (Vf) is specified at 900mV maximum at 10mA. This device is suitable for power regulation and voltage reference applications across various industries including consumer electronics, automotive, and industrial control systems. The component is supplied in Tape & Box (TB) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Voltage - Zener (Nom) (Vz) | 3.9 V |
| Impedance (Max) (Zzt) | 100 Ohms |
| Supplier Device Package | DO34-A2 |
| Power - Max | 370 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 1 V |
