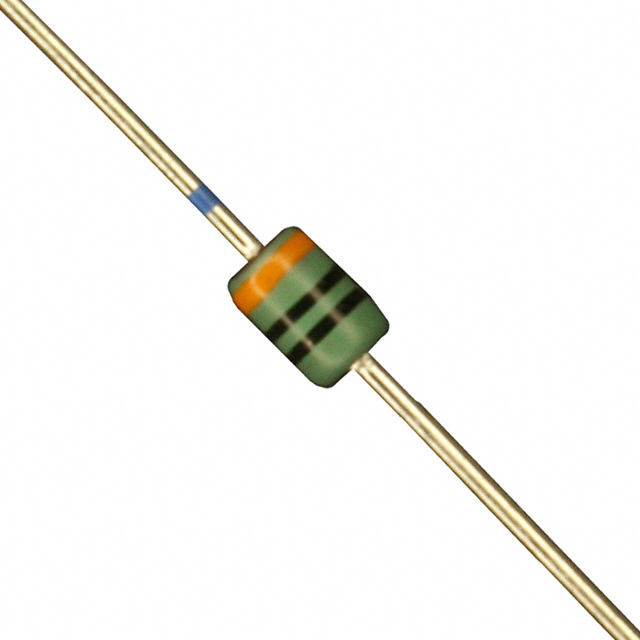

MAZ40300MF
DIODE ZENER 3V 370MW DO34Manufacturer: Panasonic Electronic Components
Categories: Single Zener Diodes
Quality Control: Learn More
Panasonic Electronic Components MAZ40300MF is a Zener Diode designed for applications requiring precise voltage regulation. This component offers a nominal Zener voltage (Vz) of 3V with a ±7% tolerance. It features a maximum power dissipation of 370 mW and a reverse leakage current of 50 µA at 1V. The diode exhibits a Zener impedance (Zzt) of 100 Ohms (Max).
The MAZ40300MF is housed in a DO-204AG, DO-34, Axial package, also identified as DO34-A2, suitable for through-hole mounting. It is supplied in Tape & Box (TB) packaging. This Zener diode is commonly utilized in power management circuits, voltage stabilization, and protection applications across various industries including consumer electronics and industrial control systems. The forward voltage (Vf) is a maximum of 900 mV at 10 mA.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Tolerance | ±7% |
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Voltage - Zener (Nom) (Vz) | 3 V |
| Impedance (Max) (Zzt) | 100 Ohms |
| Supplier Device Package | DO34-A2 |
| Power - Max | 370 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Current - Reverse Leakage @ Vr | 50 µA @ 1 V |
