UNRL21300A

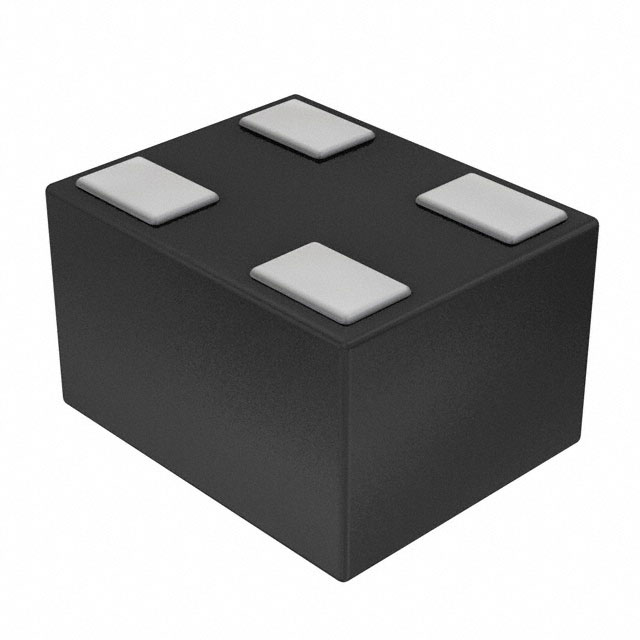

TRANS PREBIAS NPN 50V ML4-N1Manufacturer: Panasonic Electronic Components
Categories: Single, Pre-Biased Bipolar Transistors
Quality Control: Learn More
Panasonic Electronic Components UNRL21300A is an NPN pre-biased bipolar junction transistor (BJT) designed for surface mount applications. This component features a collector-emitter breakdown voltage of 50 V and a maximum collector current of 100 mA. The integrated base resistor (R1) is 47 kOhms, and the emitter-base resistor (R2) is 47 kOhms, facilitating simplified circuit design. With a transition frequency of 150 MHz and a power dissipation of 150 mW, it offers robust performance. The DC current gain (hFE) is a minimum of 80 at 5 mA and 10 V. The device is supplied in the ML4-N1 package, equivalent to SC-103, and is available on tape and reel. This transistor is suitable for use in various electronic systems, including industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-103 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Supplier Device Package | ML4-N1 |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 150 mW |
| Frequency - Transition | 150 MHz |
| Resistor - Base (R1) | 47 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
