UNR5119G0L
TRANS PREBIAS PNP 50V SMINI3Manufacturer: Panasonic Electronic Components
Categories: Single, Pre-Biased Bipolar Transistors
Quality Control: Learn More

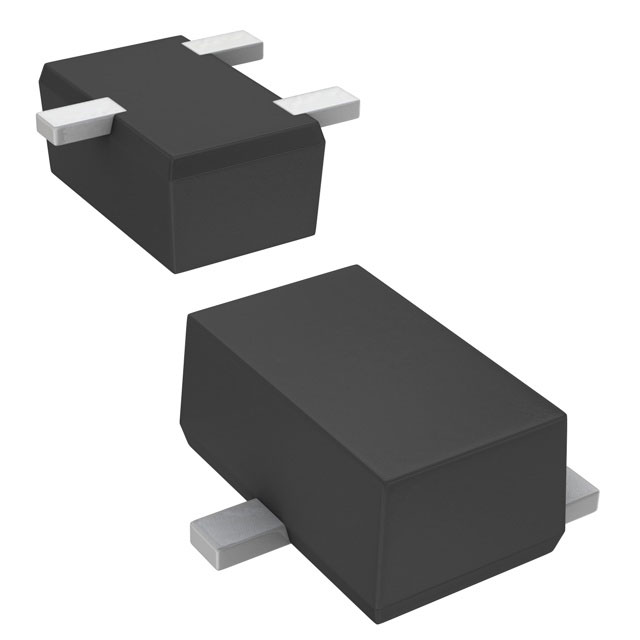

Panasonic Electronic Components UNR5119G0L is a PNP pre-biased bipolar junction transistor. This component features a 50V collector-emitter breakdown voltage and a maximum collector current of 100mA. It offers a transition frequency of 80MHz and a maximum power dissipation of 150mW. The device is housed in a SMini3-F2 package, a surface mountable SC-85 form factor, supplied on tape and reel. Integrated base resistors of 1kO (R1) and 10kO (R2) are incorporated. Typical applications are found in consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-85 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 10V |
| Supplier Device Package | SMini3-F2 |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 150 mW |
| Frequency - Transition | 80 MHz |
| Resistor - Base (R1) | 1 kOhms |
| Resistor - Emitter Base (R2) | 10 kOhms |
