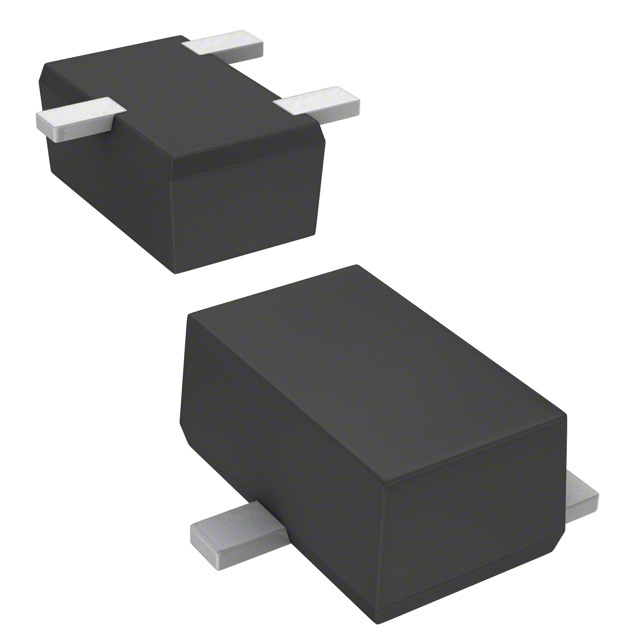

DRC2643T0L
TRANS PREBIAS NPN 20V 0.6A MINI3Manufacturer: Panasonic Electronic Components
Categories: Single, Pre-Biased Bipolar Transistors
Quality Control: Learn More
Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 20 V 600 mA 200 mW Surface Mount MINI3-G3-B
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 10 week(s)Product Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 80mV @ 2.5mA, 50mA |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 50mA, 5V |
| Supplier Device Package | MINI3-G3-B |
| Current - Collector (Ic) (Max) | 600 mA |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
| Power - Max | 200 mW |
| Resistor - Base (R1) | 4.7 kOhms |
