SK8603170L

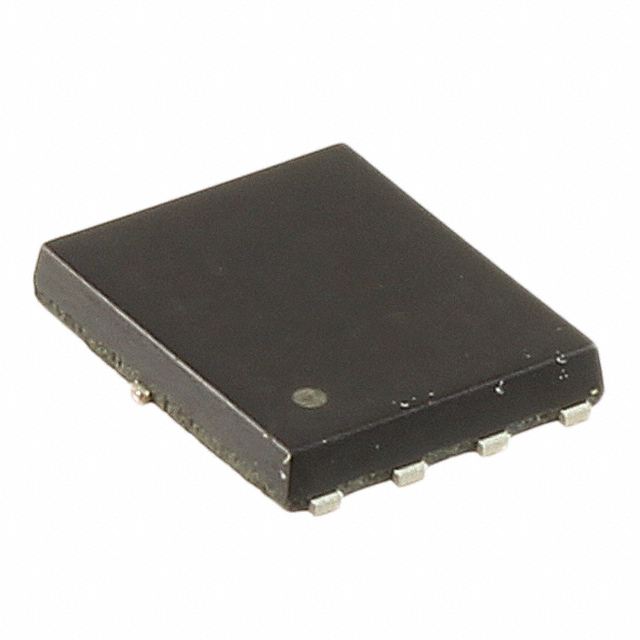

MOSFET N-CH 30V 20A/59A 8HSOManufacturer: Panasonic Electronic Components
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Panasonic Electronic Components SK8603170L is an N-Channel MOSFET designed for demanding applications. This device features a 30V drain-to-source breakdown voltage and supports a continuous drain current of 20A at ambient temperature and 59A at case temperature. The low on-resistance of 4.1mOhm at 14A and 10V gate drive, combined with a maximum gate charge of 17 nC at 4.5V, ensures efficient switching performance. With a maximum junction temperature of 150°C, it offers robust thermal management, dissipating up to 2.8W at ambient and 24W at case temperature. The SK8603170L is housed in an 8-PowerSMD, Flat Leads (HSO8-F4-B) package for surface mounting and is supplied on tape and reel. This component is suitable for use in power management, automotive, and industrial control systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerSMD, Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta), 59A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.1mOhm @ 14A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta), 24W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 2.56mA |
| Supplier Device Package | HSO8-F4-B |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2940 pF @ 10 V |
