SK8403180L
MOSFET N-CH 30V 12A 8HSSOManufacturer: Panasonic Electronic Components
Categories: Single FETs, MOSFETs
Quality Control: Learn More

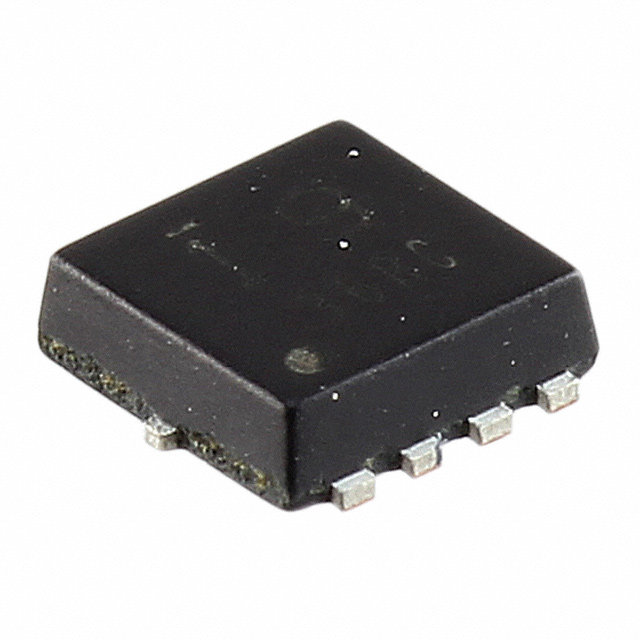

Panasonic Electronic Components SK8403180L is an N-Channel Power MOSFET designed for demanding applications. This device features a 30V drain-source breakdown voltage and a continuous drain current capability of 12A at ambient temperature (25°C) and 39A at case temperature. With a low on-resistance of 7.1mOhm at 8.5A and 10V Vgs, it optimizes power efficiency. The MOSFET offers a maximum power dissipation of 2W (Ta) and 19W (Tc), supporting robust thermal management. Key parameters include a gate charge of 10nC at 4.5V and an input capacitance of 1680pF at 10V Vds. The HSSO8-F1-B package, a surface-mount 8-PowerSMD with flat leads, is supplied on tape and reel. This component is suitable for use in power management, automotive, and industrial control systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerSMD, Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 39A (Tc) |
| Rds On (Max) @ Id, Vgs | 7.1mOhm @ 8.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 19W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 1.45mA |
| Supplier Device Package | HSSO8-F1-B |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1680 pF @ 10 V |
