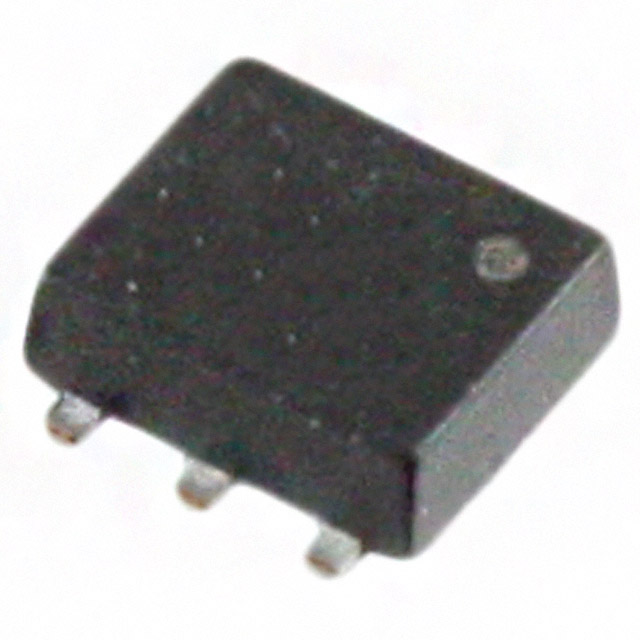

MTM761110LBF
MOSFET P-CH 12V 4A WSMINI6Manufacturer: Panasonic Electronic Components
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Panasonic Electronic Components P-Channel MOSFET, part number MTM761110LBF, is a surface mount device in a WSMini6-F1-B package. This component features a Drain-to-Source Voltage (Vdss) of 12V and a continuous Drain current (Id) of 4A at 25°C. The Rds On is specified at a maximum of 34mOhm at 1A and 4.5V Vgs, with drive voltages available from 1.8V to 4.5V. Input capacitance (Ciss) is a maximum of 1400 pF at 10V. The device has a maximum junction temperature of 150°C and a maximum power dissipation of 700mW. This MOSFET is utilized in applications such as portable electronics, power management, and automotive systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
| Rds On (Max) @ Id, Vgs | 34mOhm @ 1A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 700mW (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Supplier Device Package | WSMini6-F1-B |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 12 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1400 pF @ 10 V |
