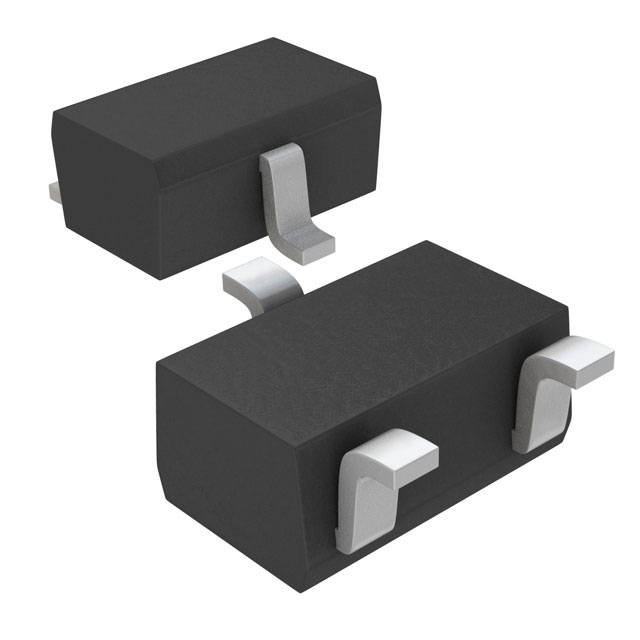

MTM231232LBF
MOSFET P-CH 20V 3A SMINI3-G1-BManufacturer: Panasonic Electronic Components
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Panasonic Electronic Components MTM231232LBF is a P-Channel MOSFET designed for surface mount applications. This component features a Drain to Source Voltage (Vdss) of 20V and a continuous drain current (Id) of 3A at 25°C. The Rds On is specified at a maximum of 55mOhm at 1A and 4V Vgs. With a maximum power dissipation of 500mW, it is suitable for operation up to 150°C. The SMini3-G1-B package, also known as SC-70 or SOT-323, houses this Metal Oxide technology device. Input capacitance (Ciss) is a maximum of 1000 pF at 10V. Drive voltages range from 2.5V to 4.5V. This MOSFET is utilized in various industrial applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) |
| Rds On (Max) @ Id, Vgs | 55mOhm @ 1A, 4V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA |
| Supplier Device Package | SMini3-G1-B |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±10V |
| Drain to Source Voltage (Vdss) | 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1000 pF @ 10 V |
