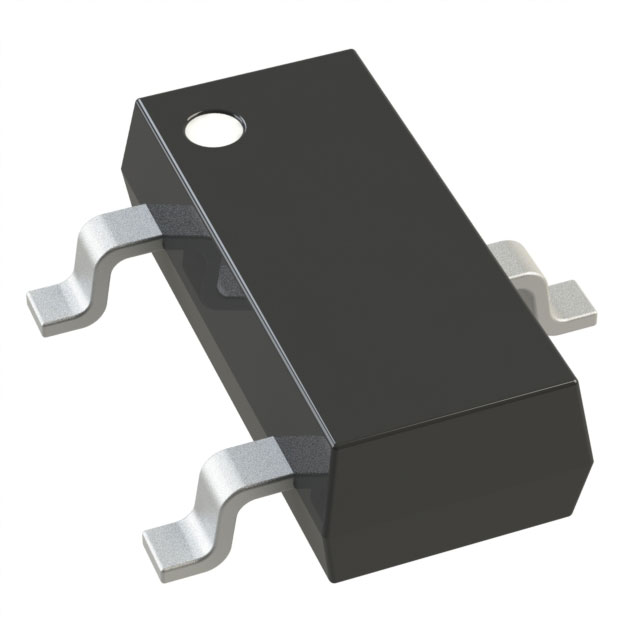

2SK3546J0L
MOSFET N-CH 50V 100MA SSMINI3-F1Manufacturer: Panasonic Electronic Components
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 50 V 100mA (Ta) 125mW (Ta) Surface Mount SSMini3-F1
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-89, SOT-490 |
| Mounting Type | Surface Mount |
| Operating Temperature | 125°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
| Rds On (Max) @ Id, Vgs | 12Ohm @ 10mA, 4V |
| FET Feature | - |
| Power Dissipation (Max) | 125mW (Ta) |
| Vgs(th) (Max) @ Id | 1.5V @ 1µA |
| Supplier Device Package | SSMini3-F1 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4V |
| Vgs (Max) | ±7V |
| Drain to Source Voltage (Vdss) | 50 V |
| Input Capacitance (Ciss) (Max) @ Vds | 12 pF @ 3 V |
