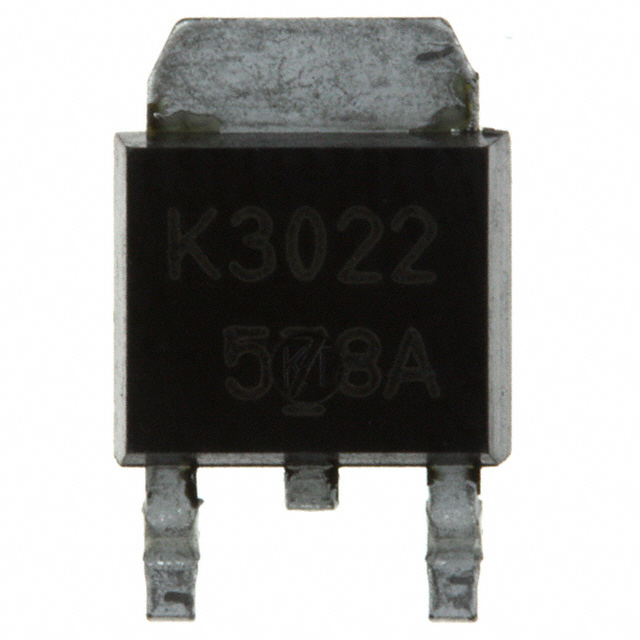

2SK302200L
MOSFET N-CH 60V 5A U-G2Manufacturer: Panasonic Electronic Components
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 5A (Tc) 1W (Ta), 10W (Tc) Surface Mount U-G2
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5A (Tc) |
| Rds On (Max) @ Id, Vgs | 130mOhm @ 3A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta), 10W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | U-G2 |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 220 pF @ 10 V |
