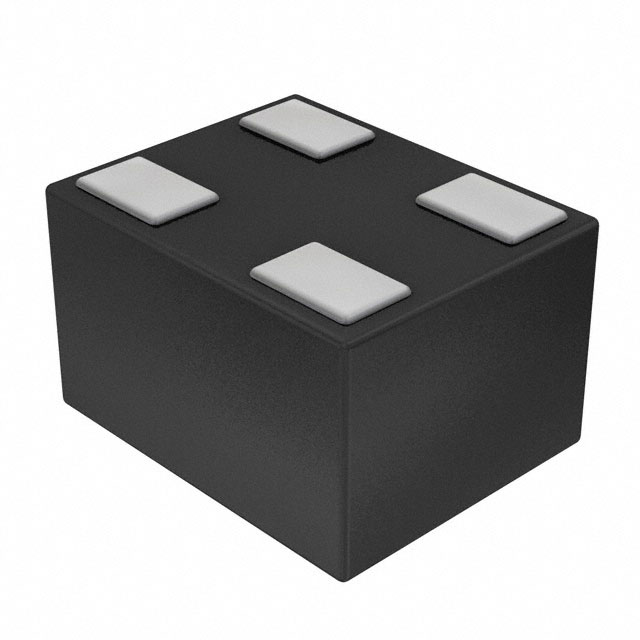

MA4L72800A
DIODE SCHOTTKY 30V 30MA LEADLESSManufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More
Panasonic Electronic Components MA4L72800A is a Schottky diode designed for demanding applications. This surface mount component, packaged in the SC-103 (ML4-N1), offers a reverse voltage rating of 30V and an average rectified current capability of 30mA. Its low forward voltage drop of 1V at 30mA and a rapid reverse recovery time of 1ns make it suitable for high-frequency signal processing. With a typical capacitance of 1.5pF at 1V and 1MHz, and a minimal reverse leakage current of 300nA at 30V, this diode excels in various electronic circuits where efficiency and speed are paramount. It finds application in industries such as telecommunications, consumer electronics, and industrial automation.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | SC-103 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 1 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 1.5pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 30mA |
| Supplier Device Package | ML4-N1 |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 30 mA |
| Current - Reverse Leakage @ Vr | 300 nA @ 30 V |
