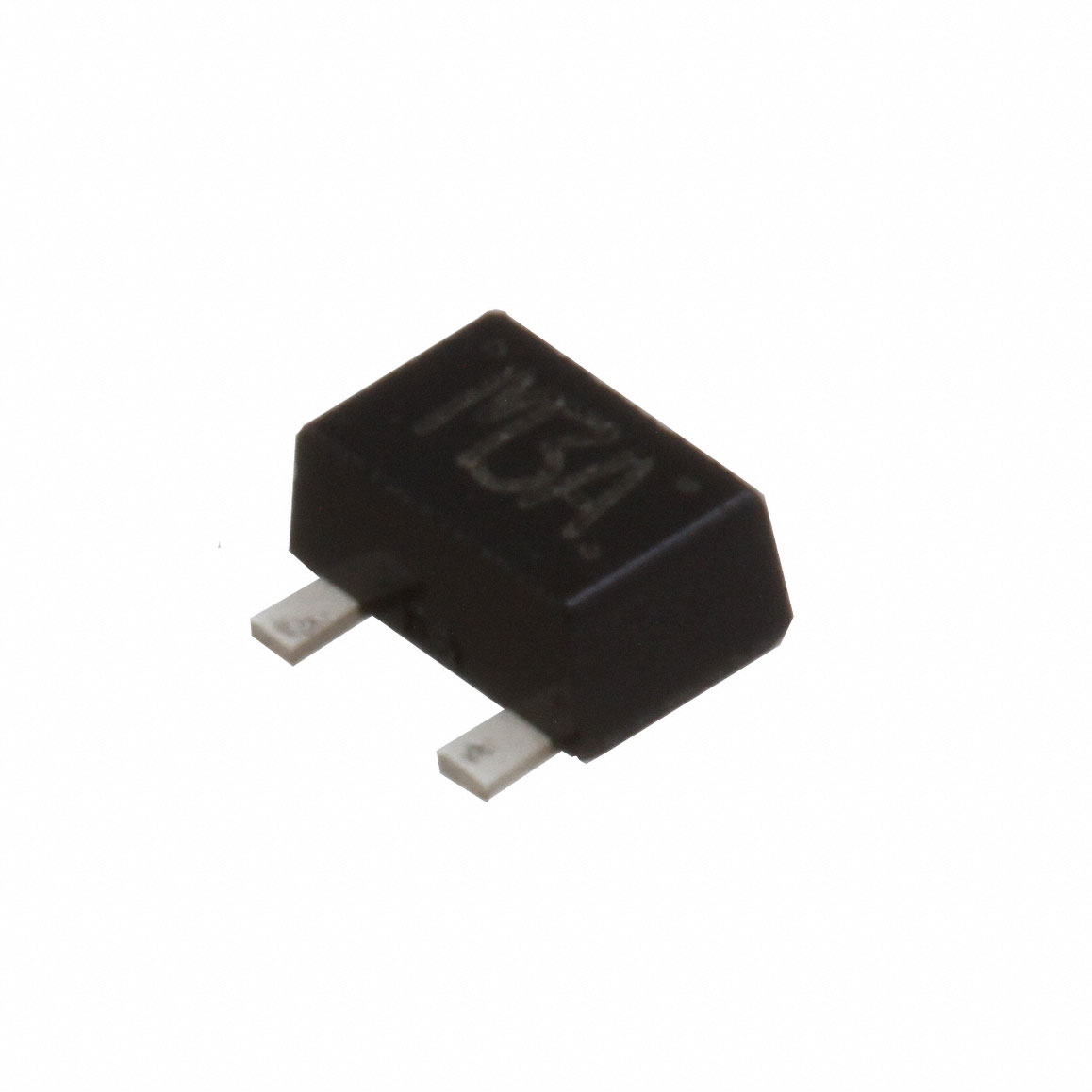

MA3X10000L
DIODE GP 200V 100MA SMINI3-F1Manufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More
Panasonic Electronic Components offers the MA3X10000L, a general-purpose diode designed for surface-mount applications. This component features a maximum DC reverse voltage (Vr) of 200 V and an average rectified current (Io) of 100 mA. The forward voltage (Vf) is rated at 1.2 V maximum at 100 mA. With a reverse leakage current of 1 µA at 200 V, the MA3X10000L exhibits a typical capacitance of 3 pF at 0 V and 1 MHz. The device has a reverse recovery time (trr) of 60 ns and operates within a junction temperature range of -40°C to 150°C. Packaged in SMini3-F1 (SC-85) and supplied on tape and reel, this diode is suitable for use in industrial and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-85 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 60 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 3pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 100mA |
| Supplier Device Package | SMini3-F1 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 1 µA @ 200 V |
