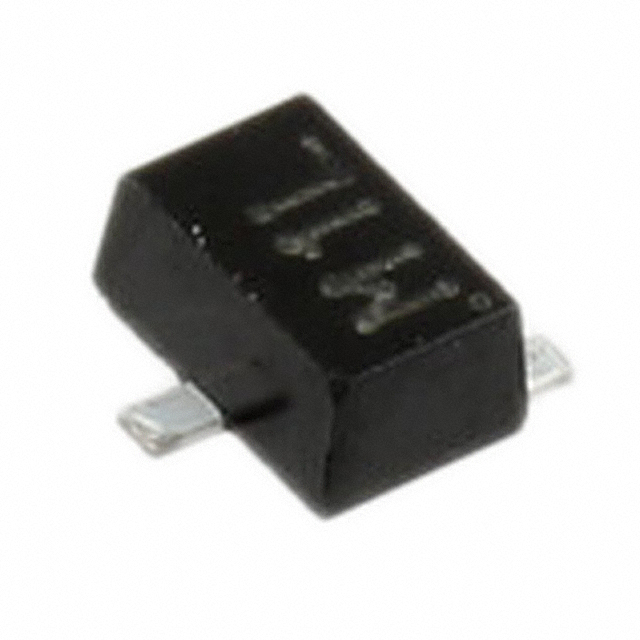

MA3J74100L
DIODE SCHOTT 30V 30MA SMINI3-F1Manufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More
Panasonic Electronic Components MA3J74100L is a Schottky diode designed for small signal rectification. This component features a maximum DC reverse voltage of 30V and a forward voltage of 1V at 30mA. With an average rectified current capability of 30mA, it exhibits a reverse leakage current of 300 nA at 30V. The device boasts a fast reverse recovery time of 1 ns, suitable for high-frequency applications. Key specifications include a low capacitance of 1.5pF at 1V and 1MHz. The MA3J74100L is packaged in a SMini3-F1 (SC-85) surface mount configuration, supplied on tape and reel. Its operating junction temperature is rated up to 125°C. This diode is utilized in various electronic circuits requiring efficient rectification and low forward voltage drop.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-85 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 1 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 1.5pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 30mA |
| Supplier Device Package | SMini3-F1 |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 30 mA |
| Current - Reverse Leakage @ Vr | 300 nA @ 30 V |
