MA2Q73600L

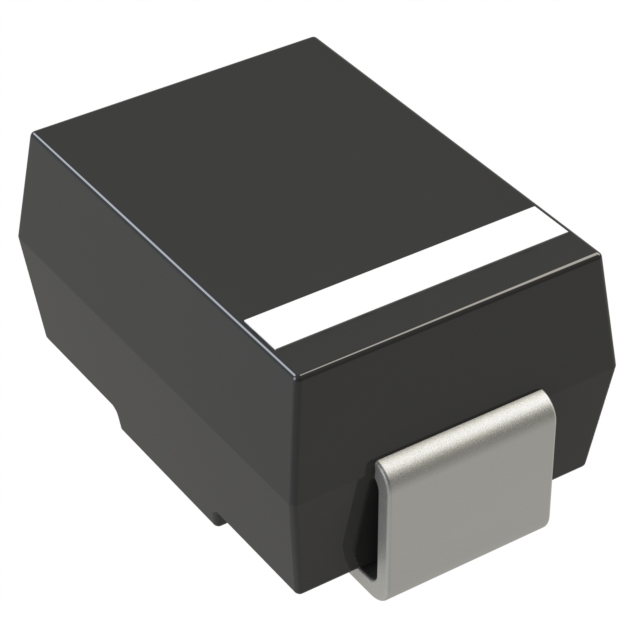

DIODE SCHOTTKY 40V 1A NMINIP2-J1Manufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More
Panasonic Electronic Components MA2Q73600L is a Schottky diode with a maximum reverse voltage of 40V and an average rectified current of 1A. This surface mount component, designated by the NMiniP2-J1 package (DO-214BA), features a low forward voltage of 550mV at 1A and a reverse leakage of 2mA at 40V. Its fast recovery time of 30ns makes it suitable for applications requiring efficient rectification. The diode operates within a junction temperature range of -40°C to 125°C and exhibits a capacitance of 50pF at 10V and 1MHz. This component is commonly utilized in power supplies, switching circuits, and automotive electronics. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214BA |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 50pF @ 10V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | NMiniP2-J1 |
| Operating Temperature - Junction | -40°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 2 mA @ 40 V |
