MA2C85600E
DIODE GEN PURP 35V 100MA DO34-A1Manufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More

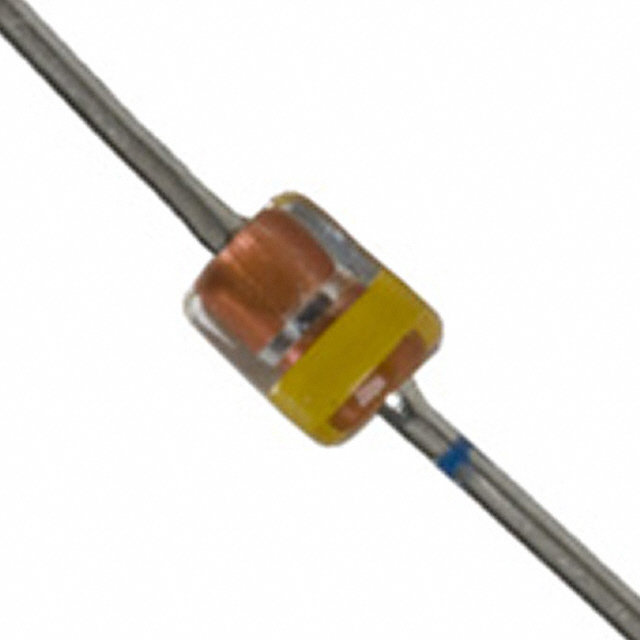

Panasonic Electronic Components MA2C85600E is a general-purpose diode with a maximum reverse voltage of 35V and an average rectified current of 100mA. This through-hole component, housed in a DO-34-A1 (DO-204AG) axial package, features a forward voltage of 1V at 100mA and a low reverse leakage current of 100nA at 33V. The diode exhibits a capacitance of 2pF at 15V and 1MHz. Operating within a junction temperature range of -25°C to 85°C, this standard technology diode is supplied in Tape & Box packaging. It finds application in various electronic circuits across industries such as consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Standard |
| Capacitance @ Vr, F | 2pF @ 15V, 1MHz |
| Current - Average Rectified (Io) | 100mA |
| Supplier Device Package | DO34-A1 |
| Operating Temperature - Junction | -25°C ~ 85°C |
| Voltage - DC Reverse (Vr) (Max) | 35 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 33 V |
