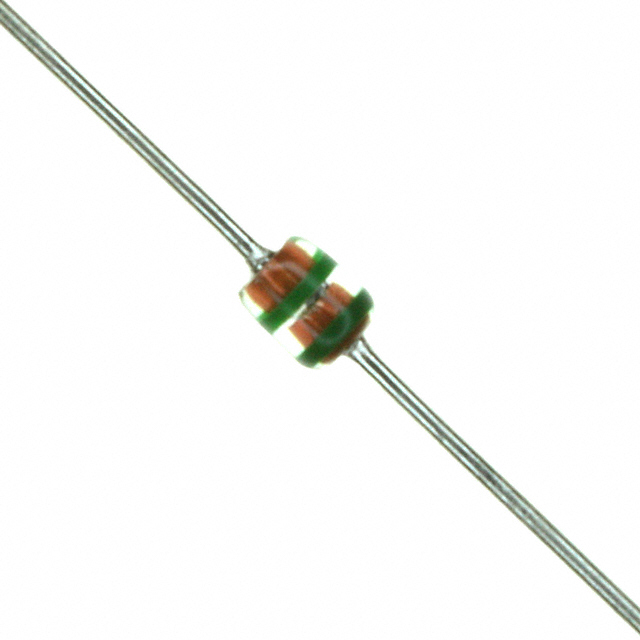

MA2C19600E
DIODE GEN PURP 50V 100MA DO34-A1Manufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More
Panasonic Electronic Components MA2C19600E is a general-purpose diode designed for small-signal applications. This through-hole component, packaged in a DO34-A1 (DO-204AG, DO-34) axial package and supplied in Tape & Box (TB) format, offers a maximum DC reverse voltage of 50V and an average rectified current of 100mA. The forward voltage drop is specified at 1.2V maximum at 100mA. Featuring a low reverse leakage current of 10 nA at 50V and a capacitance of 4pF at 0V and 1MHz, this diode is suitable for various electronics manufacturing processes. The MA2C19600E operates at a maximum junction temperature of 200°C. Its speed is categorized as small signal, suitable for currents up to 200mA. This device finds application in automotive and industrial electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 200 µs |
| Technology | Standard |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 100mA |
| Supplier Device Package | DO34-A1 |
| Operating Temperature - Junction | 200°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 10 nA @ 50 V |
