MA2C19500E
DIODE GEN PURP 35V 100MA DO34-A1Manufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More

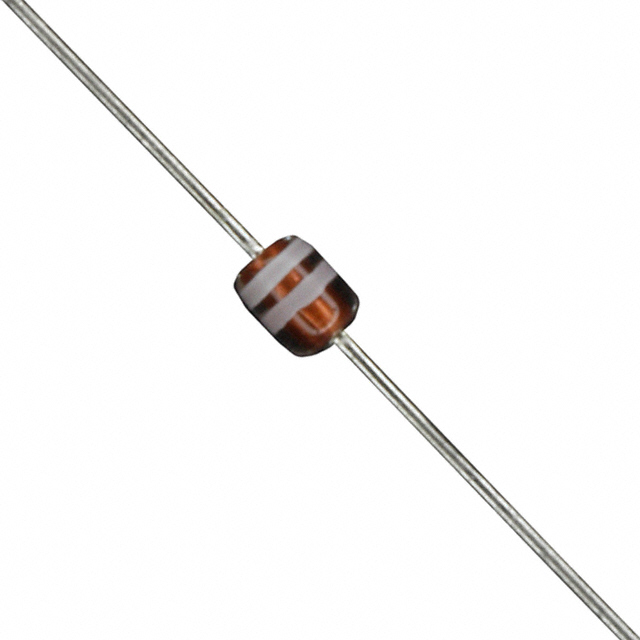

Panasonic Electronic Components MA2C19500E is a general-purpose diode designed for various electronic applications. This through-hole component features a maximum DC reverse voltage of 35V and an average rectified current capability of 100mA. The diode exhibits a low reverse leakage current of 10 nA at 30V and a forward voltage drop of 1.2V at 100mA. With a capacitance of 4pF at 0V and 1MHz, and a reverse recovery time of 200 µs, this device is suitable for signal processing and power rectification in consumer electronics, industrial automation, and automotive systems. The MA2C19500E is supplied in a DO34-A1 package, available in Tape & Box (TB) packaging. Its standard technology and operating junction temperature up to 200°C (Max) ensure reliable performance across demanding environments.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 200 µs |
| Technology | Standard |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 100mA |
| Supplier Device Package | DO34-A1 |
| Operating Temperature - Junction | 200°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 35 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 10 nA @ 30 V |
