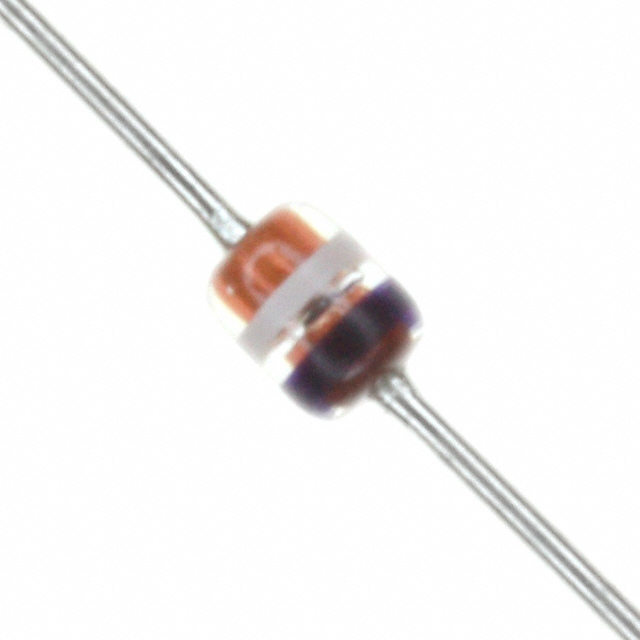

MA2C17800E
DIODE GEN PURP 40V 200MA DO34-A1Manufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More
Panasonic Electronic Components presents the MA2C17800E, a general-purpose diode designed for small signal applications. This through-hole component features a maximum DC reverse voltage of 40V and a rectified average forward current of 200mA. With a forward voltage drop of 1.1V at 200mA and a reverse leakage current of 500nA at 35V, it offers efficient rectification. The diode exhibits a capacitance of 4pF at 0V and 1MHz, and a reverse recovery time of 20ns, making it suitable for various signal processing tasks. Operating at a maximum junction temperature of 200°C, this device is housed in a DO-34-A1 package, commonly found in applications across industrial, automotive, and consumer electronics sectors. The MA2C17800E is supplied in Tape & Box packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 20 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 200mA |
| Supplier Device Package | DO34-A1 |
| Operating Temperature - Junction | 200°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 500 nA @ 35 V |
