MA2C029WAF
DIODE GEN PURP 6V 100MA DO34-A1Manufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More

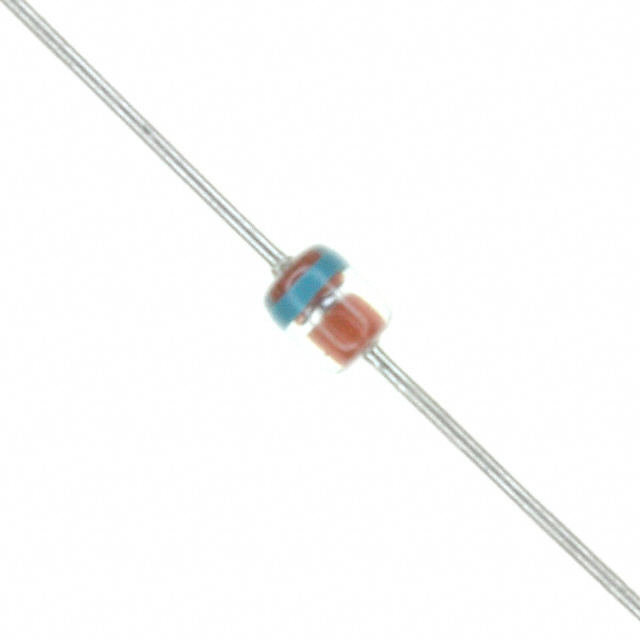

Panasonic Electronic Components MA2C029WAF is a general-purpose diode with a maximum DC reverse voltage (Vr) of 6 V and an average rectified forward current (Io) of 100 mA. This through-hole component, housed in a DO-204AG, DO-34, or DO34-A1 package, features a forward voltage drop (Vf) of 1.28 V at 3 mA and a low reverse leakage current of 1 µA at 6 V. The operating junction temperature can reach up to 150°C (Max). Designed for general-purpose applications, this small signal diode is suitable for use in various industrial and consumer electronics sectors. It is supplied in Tape & Box (TB) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 100mA |
| Supplier Device Package | DO34-A1 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 6 V |
| Voltage - Forward (Vf) (Max) @ If | 1.28 V @ 3 mA |
| Current - Reverse Leakage @ Vr | 1 µA @ 6 V |
