MA2C029TAF
DIODE GEN PURP 6V 70MA DO34-A1Manufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More

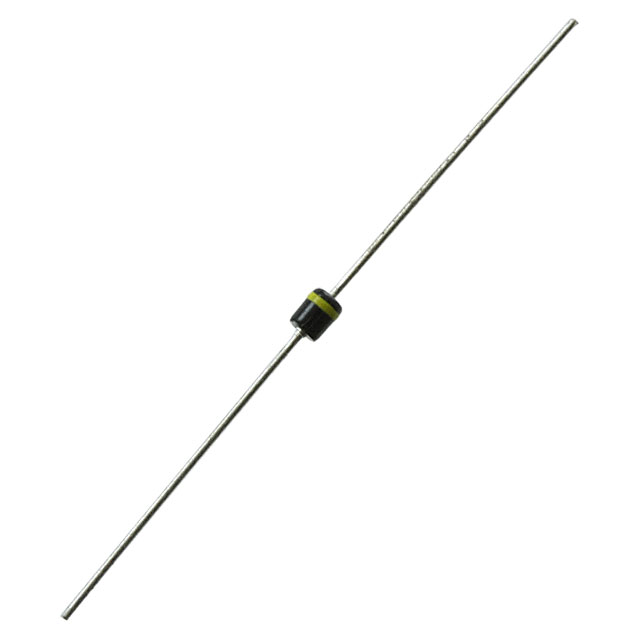

Panasonic Electronic Components MA2C029TAF is a general-purpose diode designed for a variety of applications. This through-hole component, packaged in a DO-204AG (DO-34-A1) axial package, offers a 6V reverse voltage (Vr) and a continuous forward current (Io) of 70mA. It exhibits a maximum forward voltage (Vf) of 1.92V at 3mA and a low reverse leakage current of 1 µA at 6V. The diode operates efficiently across a wide temperature range, with a maximum junction temperature of 150°C. Its small signal speed rating is suitable for applications requiring rectification up to 200mA. This component finds use in consumer electronics, industrial control systems, and telecommunications equipment. The MA2C029TAF is supplied in Tape & Box (TB) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 70mA |
| Supplier Device Package | DO34-A1 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 6 V |
| Voltage - Forward (Vf) (Max) @ If | 1.92 V @ 3 mA |
| Current - Reverse Leakage @ Vr | 1 µA @ 6 V |
