MA2C029QAF
DIODE GEN PURP 6V 50MA DO34-A1Manufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More

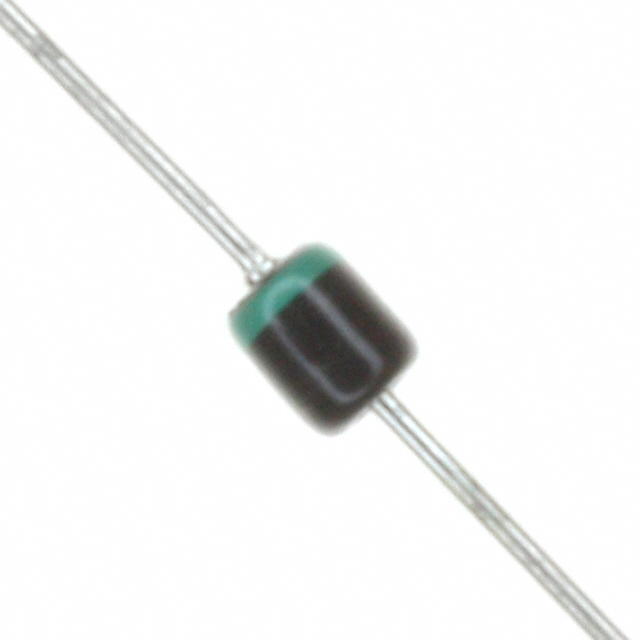

Panasonic Electronic Components MA2C029QAF is a general-purpose diode designed for efficient rectification. This through-hole component, housed in a DO-204AG (DO-34) axial package, offers a maximum reverse voltage (Vr) of 6V and a continuous average rectified forward current (Io) of 50mA. The MA2C029QAF exhibits a typical forward voltage (Vf) of 2.4V at 3mA, with a low reverse leakage current of 1 µA at 6V. Its standard technology ensures reliable performance across applications requiring small-signal rectification. Operating at junction temperatures up to 150°C (Max), this diode is suitable for use in consumer electronics and industrial control systems. The MA2C029QAF is supplied in Tape & Box packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 50mA |
| Supplier Device Package | DO34-A1 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 6 V |
| Voltage - Forward (Vf) (Max) @ If | 2.4 V @ 3 mA |
| Current - Reverse Leakage @ Vr | 1 µA @ 6 V |
