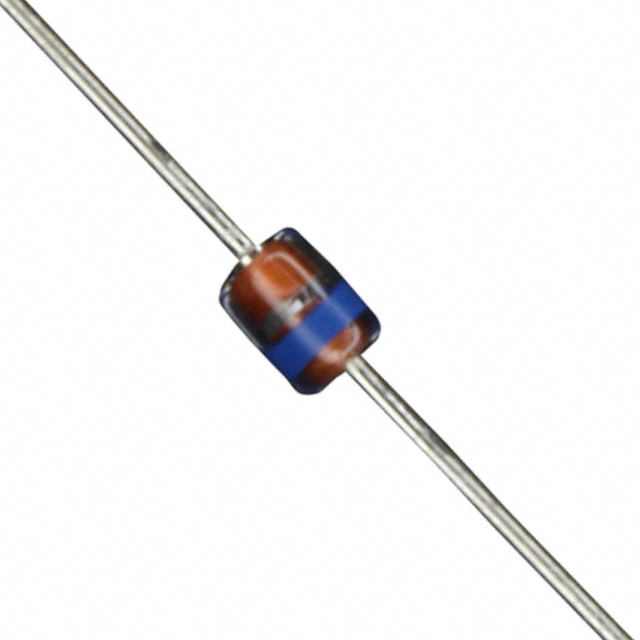

MA2C0290BF
DIODE GEN PURP 6V 50MA DO34-A1Manufacturer: Panasonic Electronic Components
Categories: Single Diodes
Quality Control: Learn More
Panasonic Electronic Components MA2C0290BF is a general-purpose diode designed for a wide range of applications. This component features a maximum DC reverse voltage of 6 V and a forward voltage of 1.1 V at a forward current of 50 mA. With an average rectified current handling capability of 50 mA and a low reverse leakage current of 10 µA at 6 V, it offers reliable performance. The diode is housed in a DO-204AG, DO-34, Axial package, commonly referred to as DO34-A1, and is supplied in Tape & Box (TB) packaging. Its operating junction temperature can reach up to 150°C (Max). This small signal diode is utilized in various industries, including consumer electronics and industrial control systems where precise signal rectification and switching are critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial |
| Mounting Type | Through Hole |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 50mA |
| Supplier Device Package | DO34-A1 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 6 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 50 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 6 V |
